Documentation

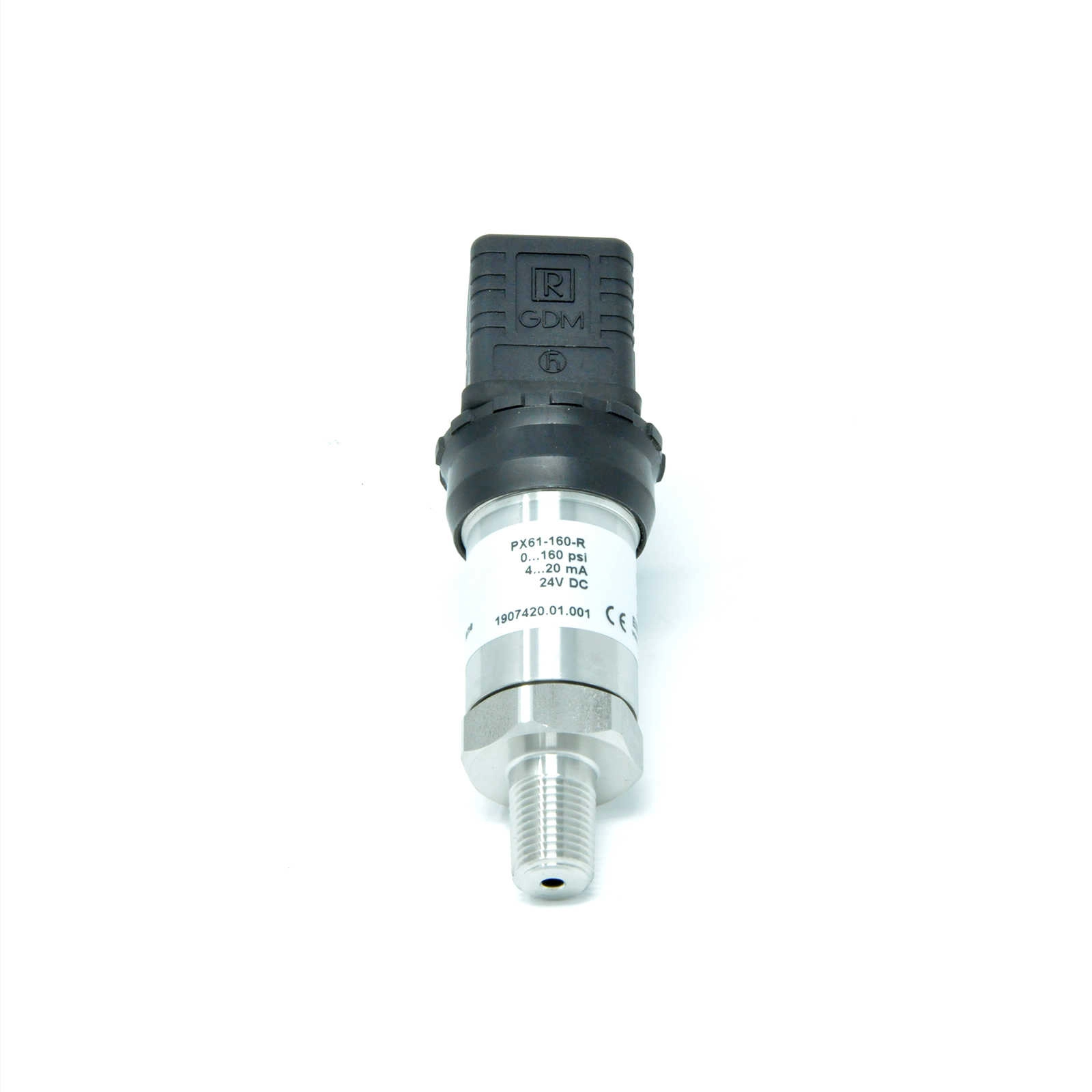

Technical Product Specification

Pressure range: 0…160psi
Media compatibility: ammonia, freon, non-corrosive liquids
Output signal: 4…20 mA DC
Power supply: 24 VDC
Process connection: 1/4″ NPT
Approval: CE

Description

The PX61-160-R 2 wire pressure transmitter has a range of 0…160psi. It is designed for refrigerant and general service purposes and can be used with any non-corrosive liquid.

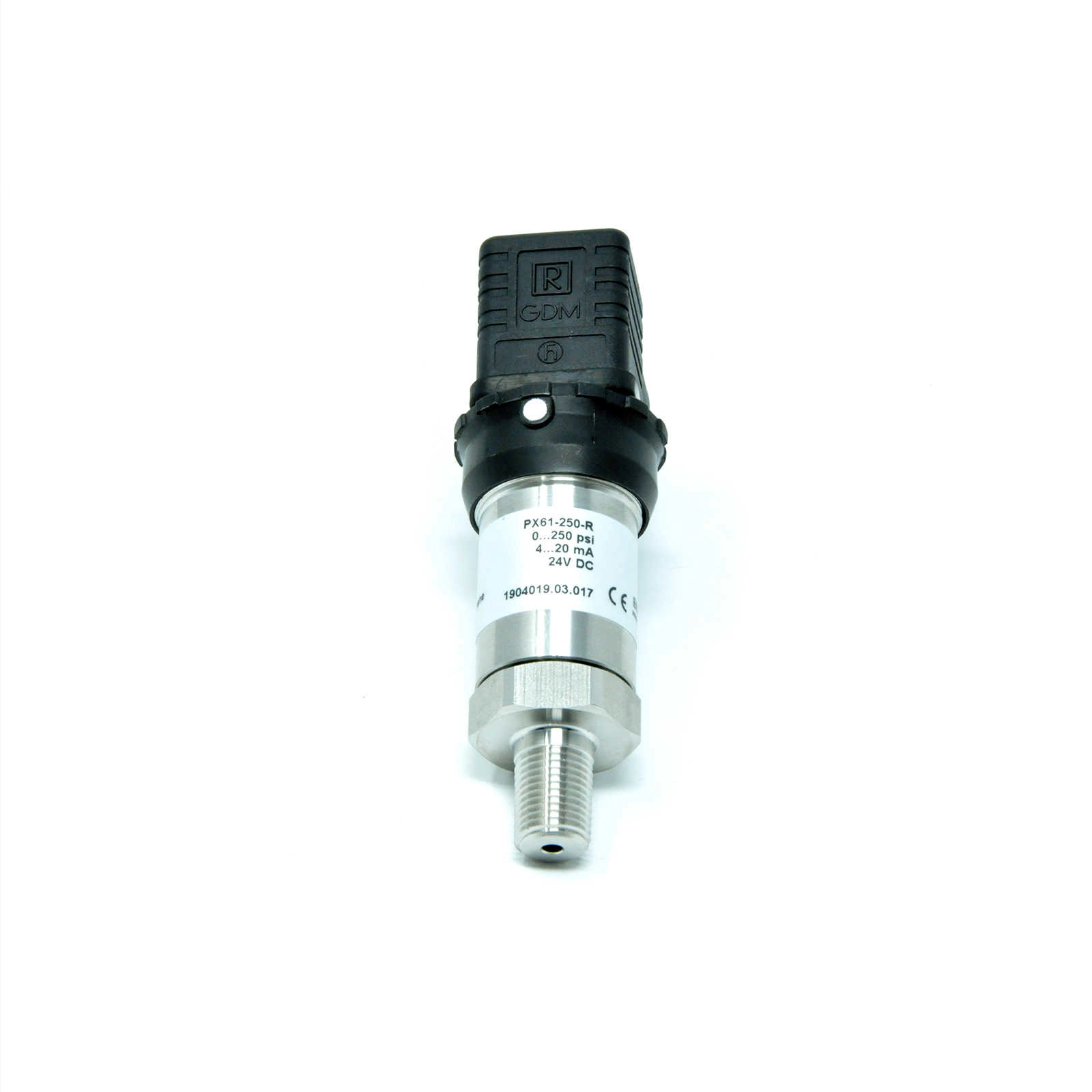

Technical Product Specification

Pressure range: 0…250psi
Media compatibility: ammonia, freon, non-corrosive liquids
Output signal: 4…20 mA DC
Power supply: 24 VDC
Process connection: 1/4″ NPT
Approval: CE

Description

The PX61-250-R 2 wire pressure transmitter has a range of 0…250psi. It is designed for refrigerant and general service purposes and can be used with any non-corrosive liquid.

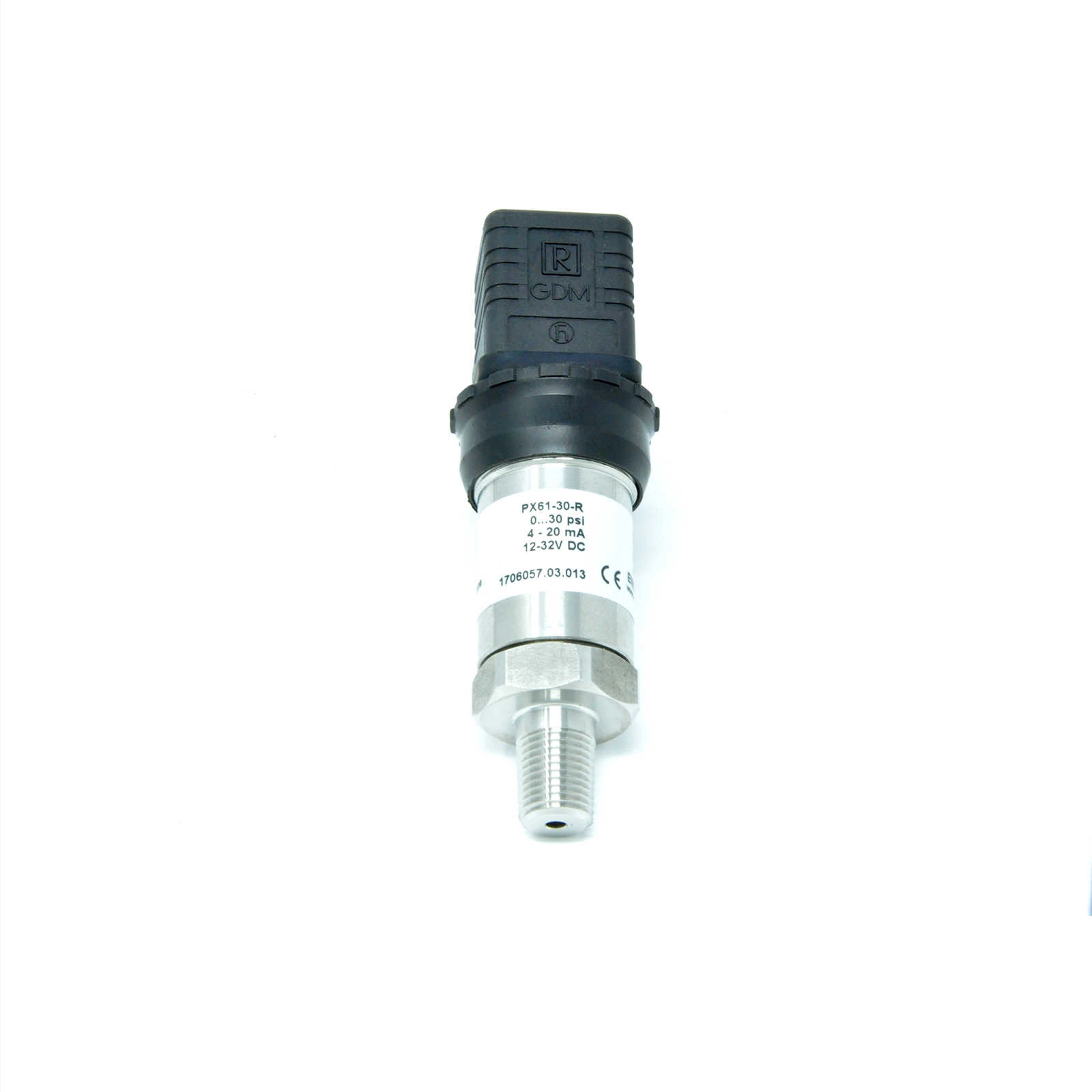

Technical Product Specification

Pressure range: 0…30psi
Media compatibility: ammonia, freon, non-corrosive liquids
Output signal: 4…20 mA DC
Power supply: 24 VDC
Process connection: 1/4″ NPT
Approval: CE

Description

The PX61-30-R 2 wire pressure transmitter has a range of 0…30psi. It is designed for refrigerant and general service purposes and can be used with any non-corrosive liquid.

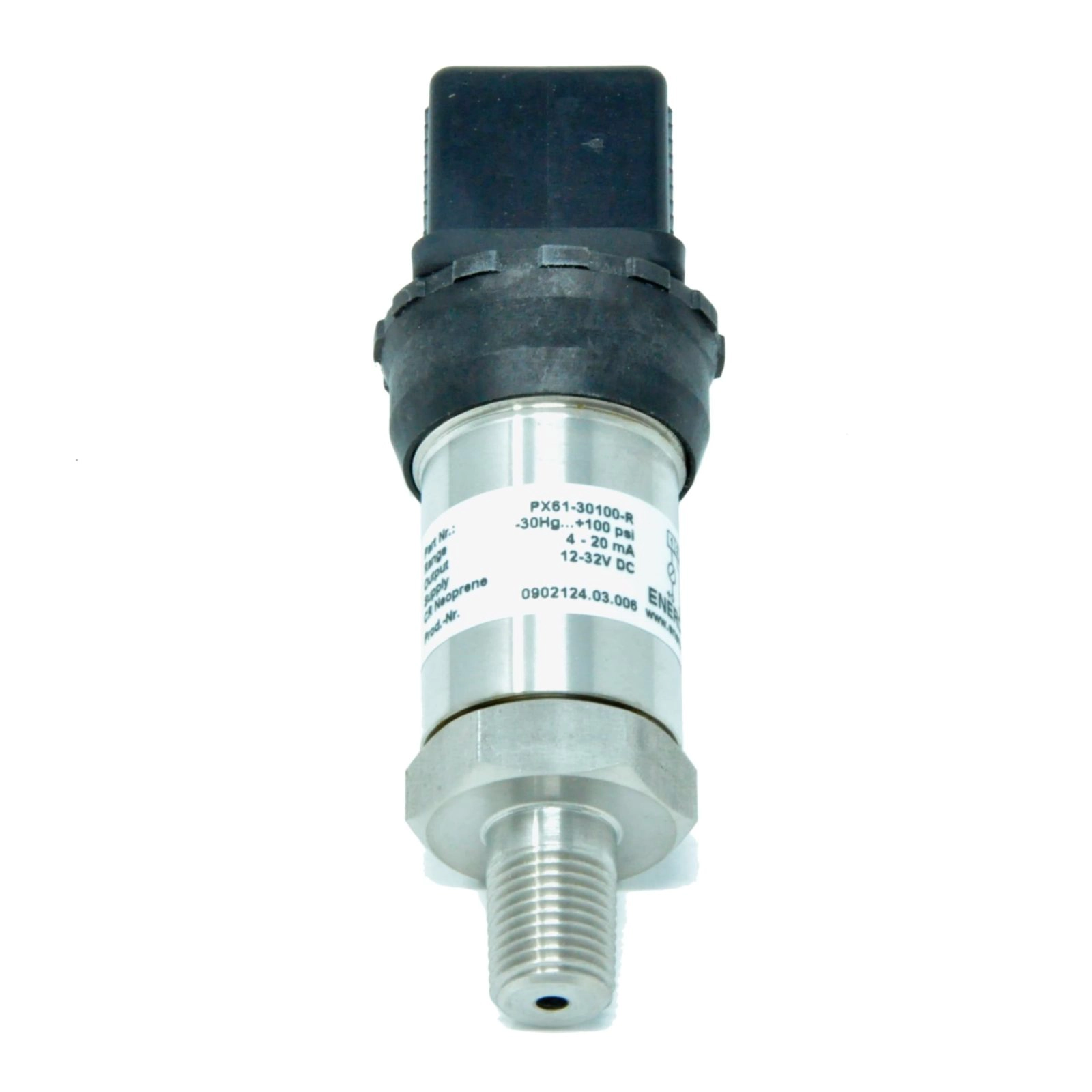

Technical Product Specification

Pressure range: -30inHg…100psi
Media compatibility: ammonia, freon, non-corrosive liquids
Output signal: 4…20 mA DC
Power supply: 24 VDC
Process connection: 1/4″ NPT
Approval: CE

Description

The PX61-30100-R 2 wire pressure transmitter has a range of -30inHg…100psi. It is designed for refrigerant and general service purposes and can be used with any non-corrosive liquid.

Technical Product Specification

Pressure range: -30inHg…15psi
Media compatibility: ammonia, freon, non-corrosive liquids
Output signal: 4…20 mA DC
Power supply: 24 VDC
Process connection: 1/4″ NPT
Approval: CE

Description

The PX61-3015-R 2 wire pressure transmitter has a range of -30…15psi. It is designed for refrigerant and general service purposes and can be used with any non-corrosive liquid.

Technical Product Specification

Pressure range: 0…500psi
Media compatibility: ammonia, freon, non-corrosive liquids
Output signal: 4…20 mA DC
Power supply: 24 VDC
Process connection: 1/4″ NPT
Approval: CE

Description

The PX61-500-R 2 wire pressure transmitter has a range of 0…500psi. It is designed for refrigerant and general service purposes and can be used with any non-corrosive liquid.

Technical Product Specification

Pressure range: 0…60psi
Media compatibility: ammonia, freon, non-corrosive liquids
Output signal: 4…20 mA DC
Power supply: 24 VDC
Process connection: 1/4″ NPT
Approval: CE

Description

The PX61-60-R 2 wire pressure transmitter has a range of 0…60psi. It is designed for refrigerant and general service purposes and can be used with any non-corrosive liquid.

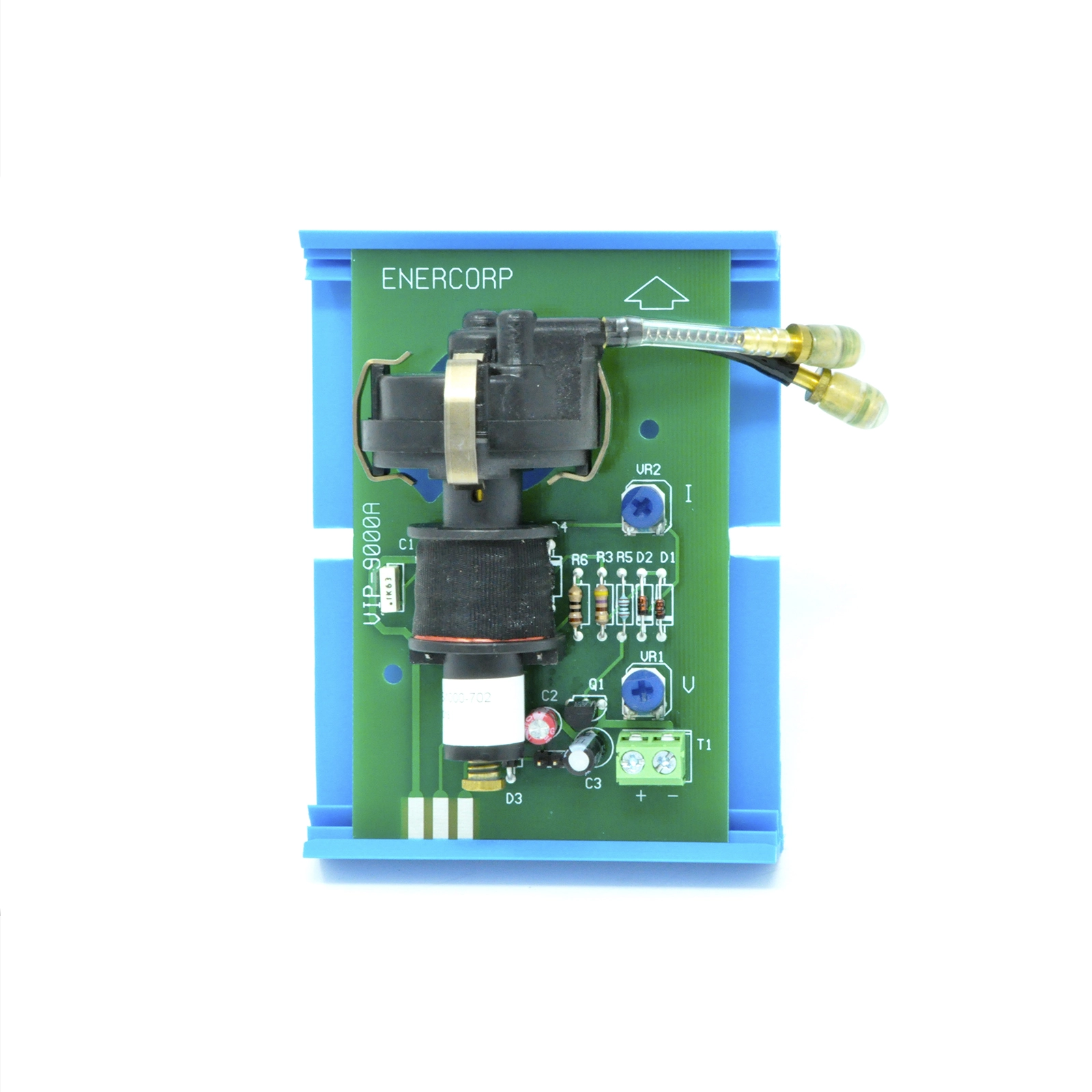

Technical Product Specification

Input: 2…10 VDC / 4…20 mA
Output: 3…15psi
Air supply required: 20psi nominal, 30psi max.
Mounting: Snap-track

Description

The VIP-9000 is an I/P or V/P transducer for interfacing electronic control panels to pneumatic valves. These are ideal for retrofit applications or where an electronic valve actuator is not acceptable.
