Documentation

Technical Product Specification

Design current: 63 Amp
Temperature stability: 115ºC
Clamp Type: wing clamp
Working voltage: 1000 V
Colour: black

Description

These high quality binding posts feature very low resistance and great durability. They are designed for use in test facilities, laboratory facilities and in bushings for transformers and chokes.

Technical Product Specification

Set point range: 1…150 Amp
Switch rating: 0.2 Amp @ 135 VAC or VDC
Power supply required: none, self powered
Sensing aperture: 0.75” dia.
Smart LED: yes
Approvals: UL, ULC, CE

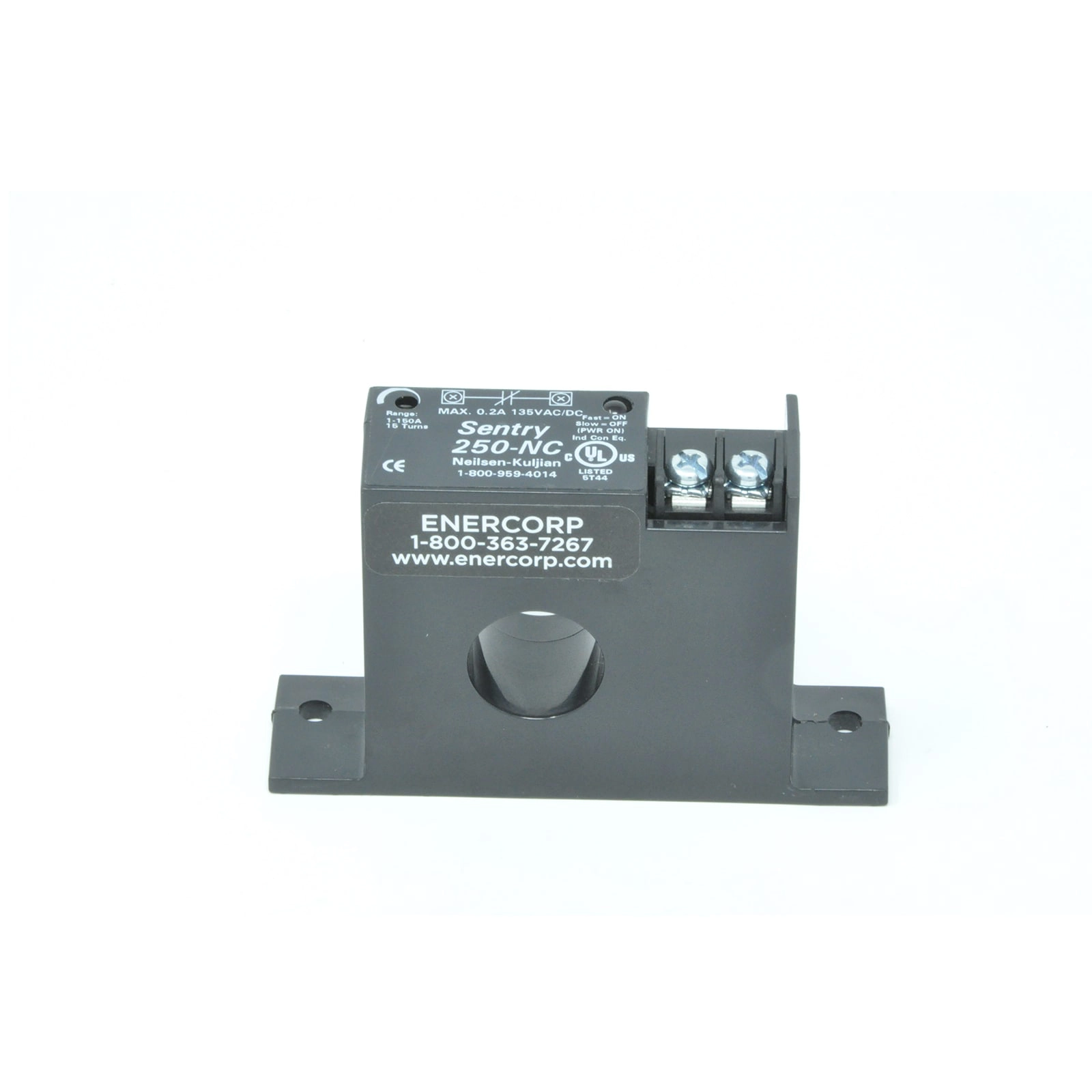

Description

The SENTRY 250-NC solid core current switch is self powered with a solid state AC/DC switch and smart LED. The casing of the current sensor is solid and wiring must be fed through the sensing aperture.

Technical Product Specification

Input ranges: 0…10 Amp, 0…20 Amp, 0…50 Amp
Output signal: 4 to 20mA
Power supply required: 12…40 VDC
Sensing aperture: 0.75” dia.
VFI technology: no
Approvals: UL, ULC, CE

Description

The SENTRY 200-1,solid core current transducer is AC field selectable with 0…10, 0…20 and 0…50 Amp range and 4…20mA DC output. The casing of the current sensor is solid and wiring must be fed through the sensing aperture.

Technical Product Specification

Set point range: 1.75…150 Amp
Switch rating: 0.2 Amp @ 135 VAC or VDC
Power supply required: none, self powered
Sensing aperture: 0.85” sq.
Smart LED: yes
Approvals: UL, ULC, CE

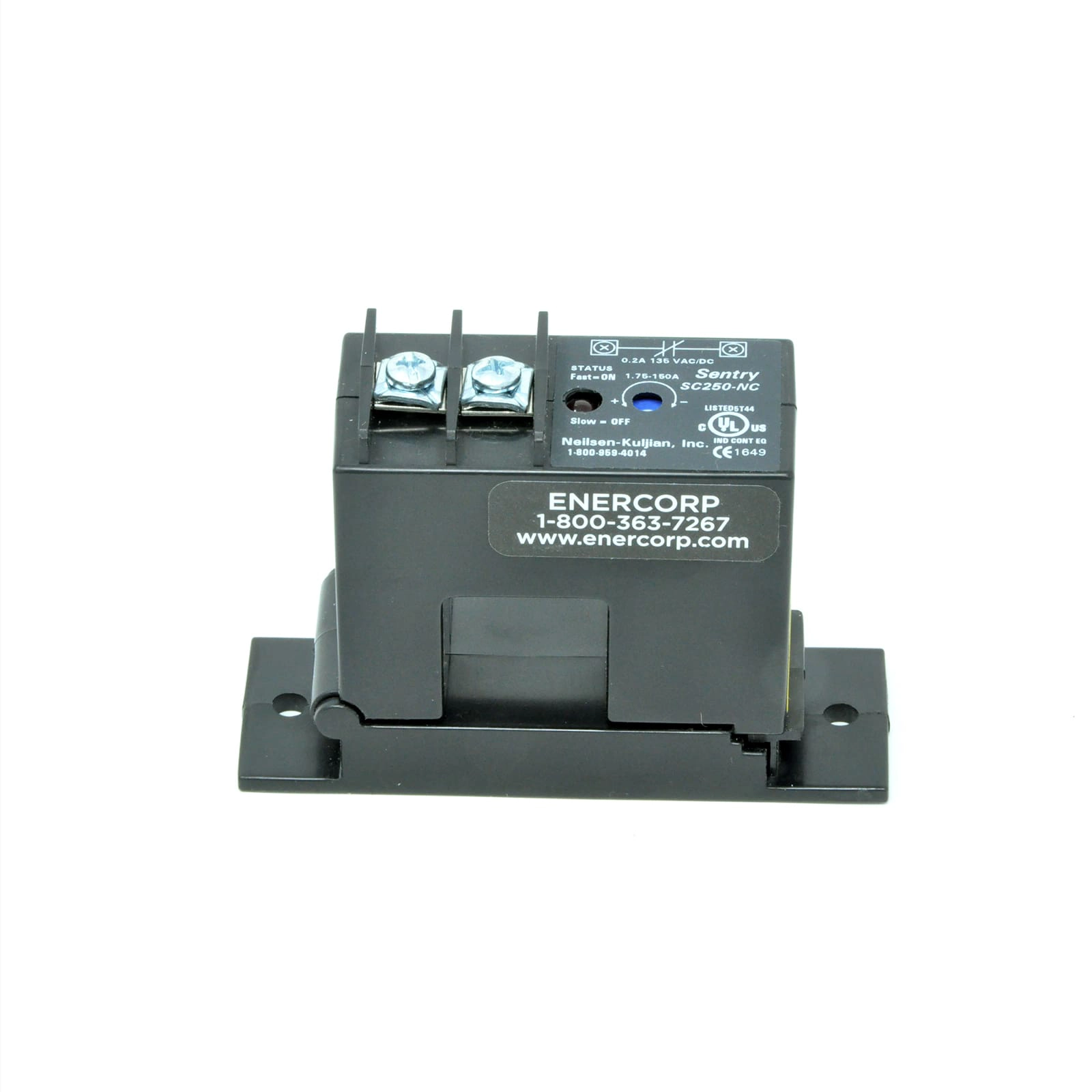

Description

The SC250-NC split core current switch is self powered with a solid state AC/DC switch and smart LED. The split core opens and is designed for ease of installation and retrofit applications.

Technical Product Specification

Set point range: fixed 0.75 Amp
Switch rating: 0.3 Amp @ 135 VAC or VDC
Power supply required: none, self powered
Sensing aperture: 0.75” dia.
Smart LED: no
Approvals: UL, ULC, CE

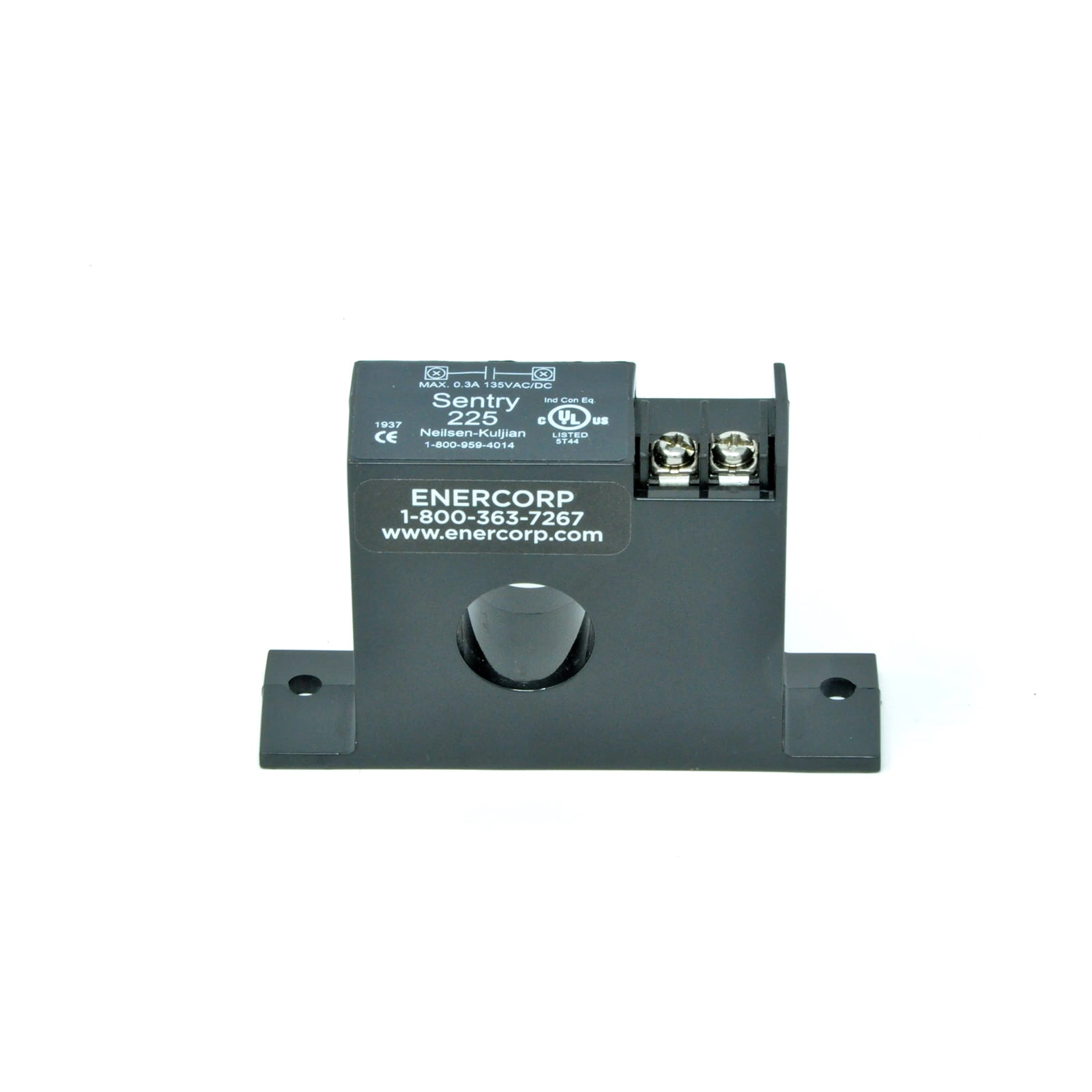

Description

The SENTRY 225 solid core current switch is self powered with a solid state AC/DC switch. The casing of the current sensor is solid and wiring must be fed through the sensing aperture.

Technical Product Specification

Set point range: 1.75…150 Amp
Switch rating: 0.3 Amp @ 135 VAC or VDC
Power supply required: none, self powered
Sensing aperture: 0.85” sq.
Smart LED: yes
Approvals: UL, ULC, CE

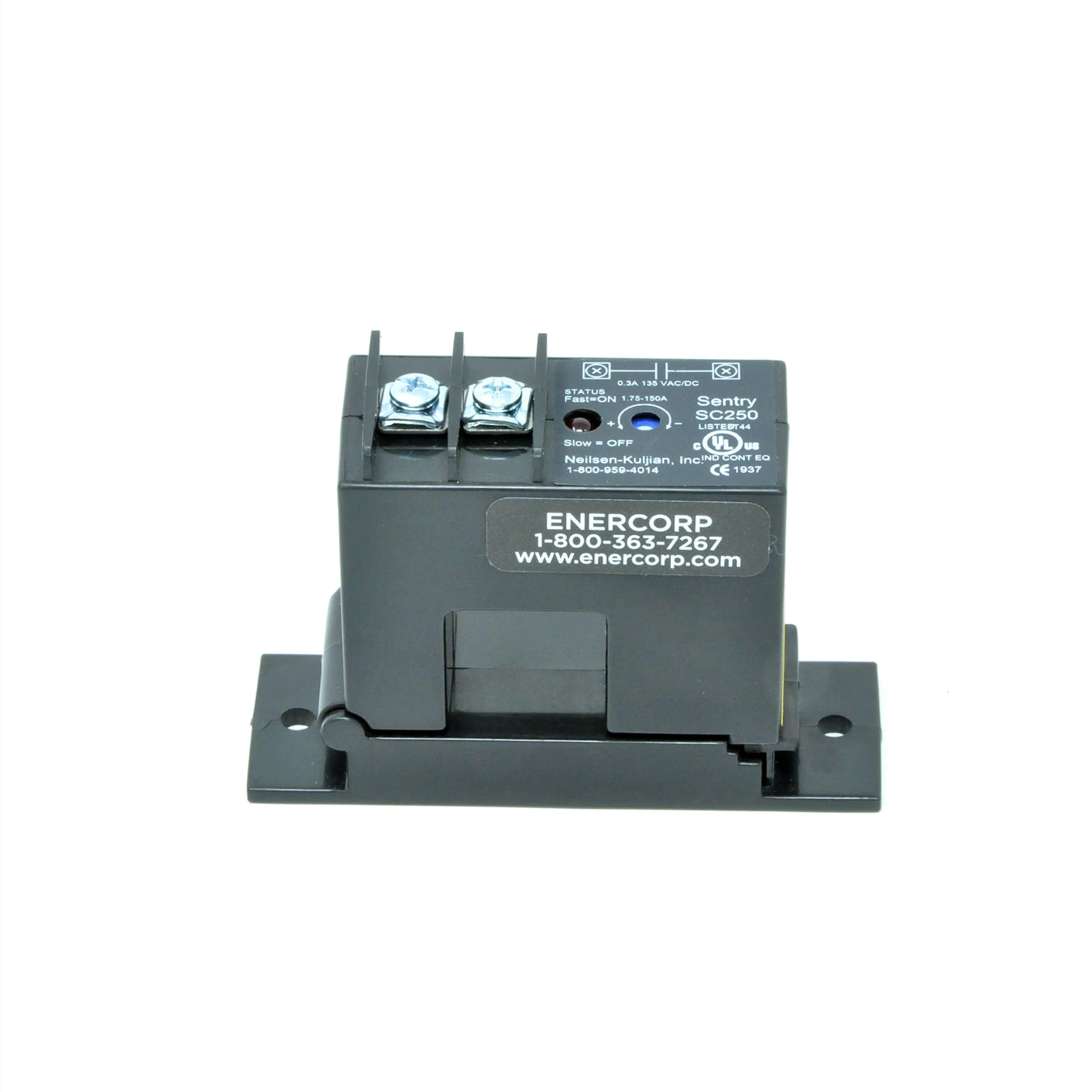

Description

The SC250 split core current switch is self powered with a solid state AC/DC switch and smart LED. The split core opens and is designed for ease of installation and retrofit applications.

Technical Product Specification

Input ranges: 0…10 Amp, 0…20 Amp, 0…50 Amp
Output signal: 0…5 VDC
Power supply required: none, self powered
Sensing aperture: 0.75” dia.
VFI technology: no
Approvals: UL, ULC, CE

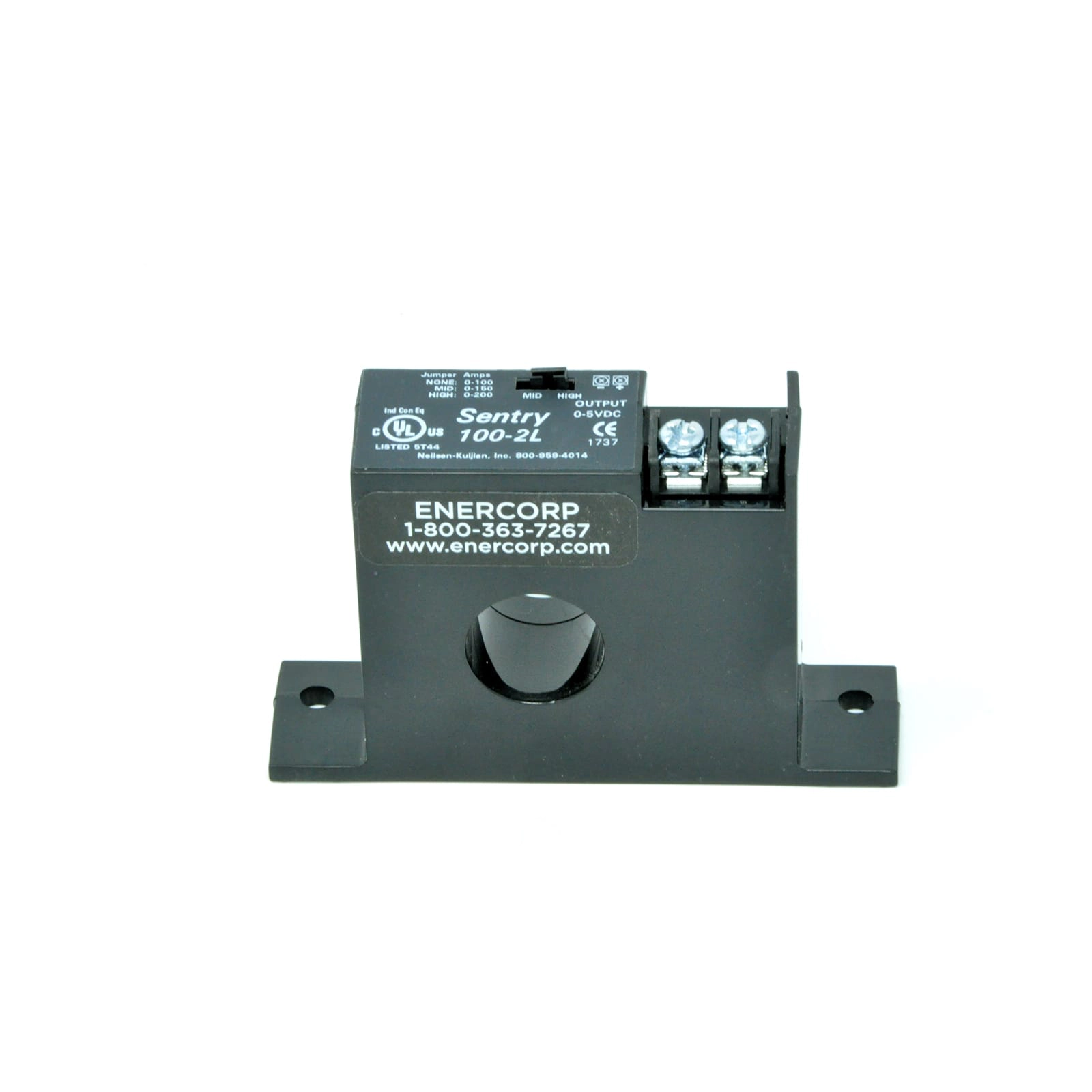

Description

The SENTRY 100-1L solid core current transducer is AC field selectable with 0…10, 0…20, 0…50 Amp range and 0…5 VDC output. The casing of the current sensor is solid and wiring must be fed through the opening.

Technical Product Specification

Input ranges: 0…100 Amp, 0…150 Amp, 0…200 Amp
Output signal: 0…5 VDC
Power supply required: none, self powered
Sensing aperture: 0.75” dia.
VFI technology: no
Approvals: UL, ULC, CE

Description

The SENTRY 100-2L, solid core current transducer is AC field selectable with 0…100, 0…150 and 0…200 Amp range and 0…5 VDC output. The casing of the current sensor is solid and wiring must be fed through the sensing aperture.
