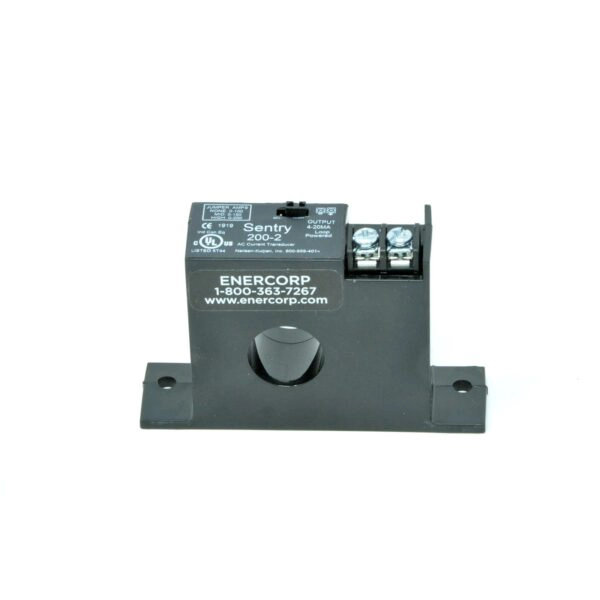

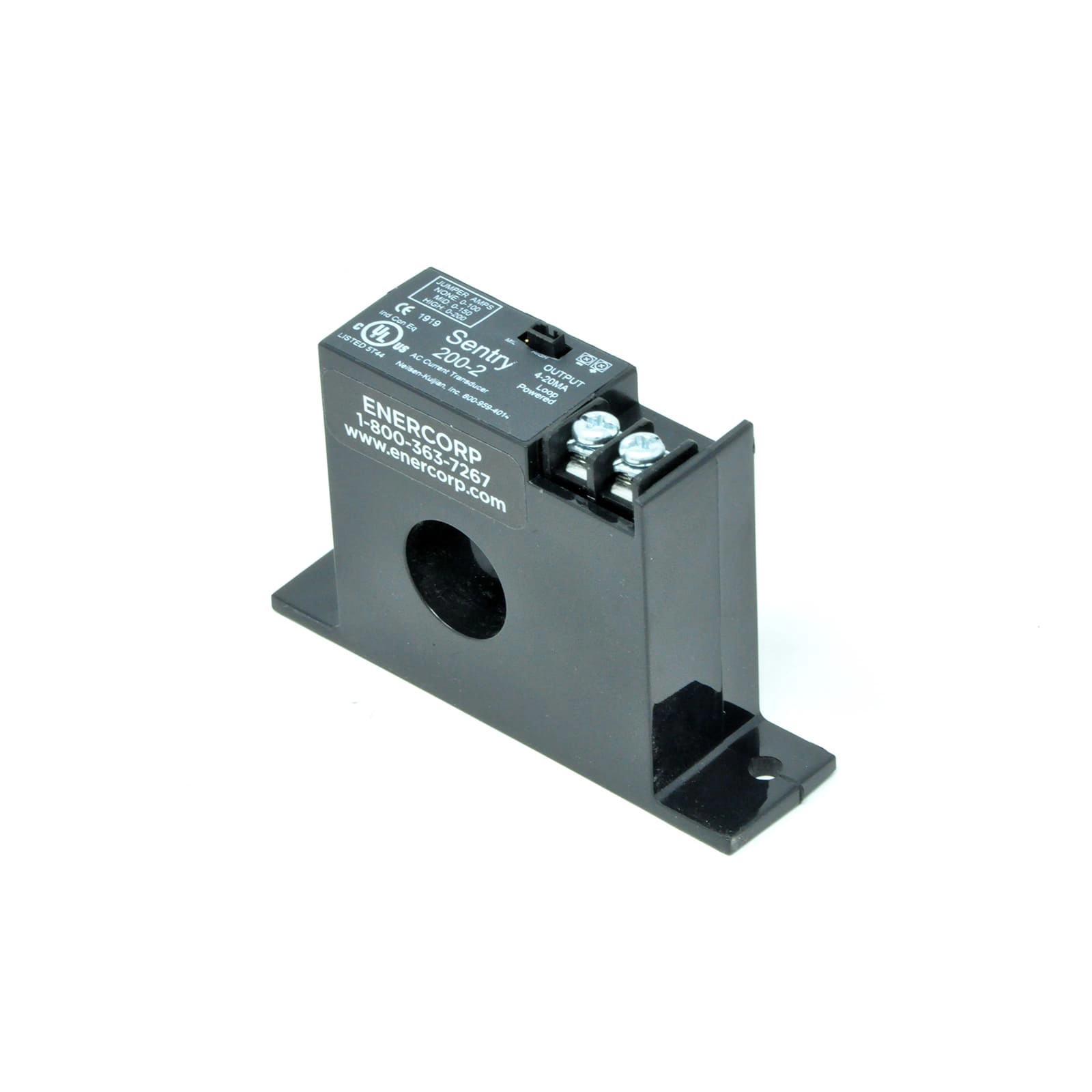

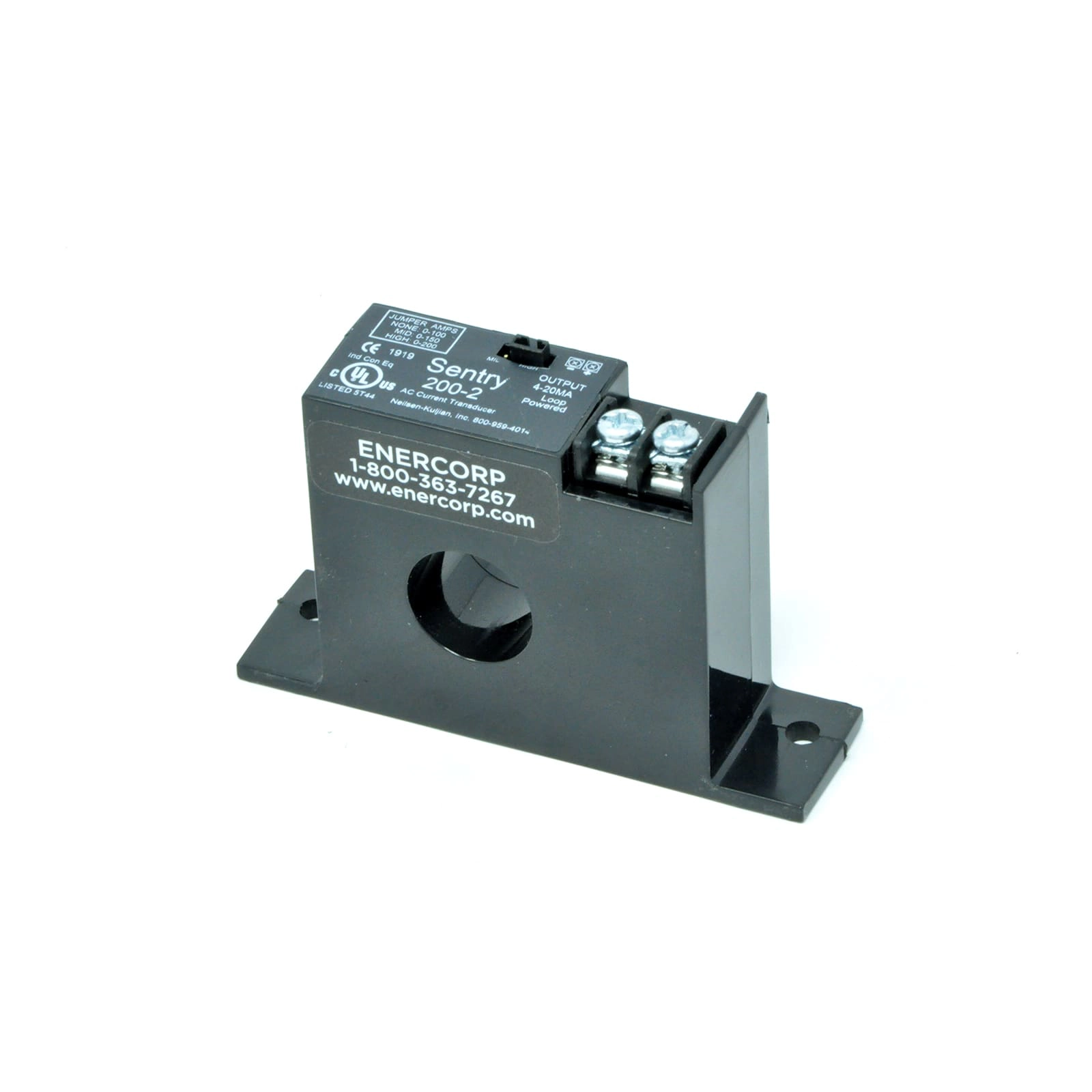

Solid Core Current Transducer SENTRY 200-2

Q: How does the SENTRY 200-2 model accommodate different current range requirements?
A: The SENTRY 200-2 current transducer 4 20mA signal can be adjusted for different AC ranges between 0 and 200 amps. This AC field selectable transducer can easily switch between 0 to 50A, 100A, or 200A with the aid of a jumper. This action can be performed on-site with no additional tools or wiring required.

Q: What are the advantages of using a solid core design in the SENTRY 200-2 for current sensing?
A: The SENTRY 200-2 solid core current transducer has many advantages such as:
• The solid core design is rugged and durable
• Installation is quick and requires only a few simple steps
• The solid core design is cost effective

Q: How can the SENTRY 200-2 be integrated into AC current transducer circuits?
A: The SENTRY 200-2 can easily be integrated into an existing AC current transducer circuit. It uses the 4…20mA which is a common loop standard. Also, installation is quick with only three simple steps:
• Thread the process wire through the aperture
• Mount the current transducer in a secure fashion
• Connect the AC current transducer circuit 4 to 20mA loop via the the two terminals
