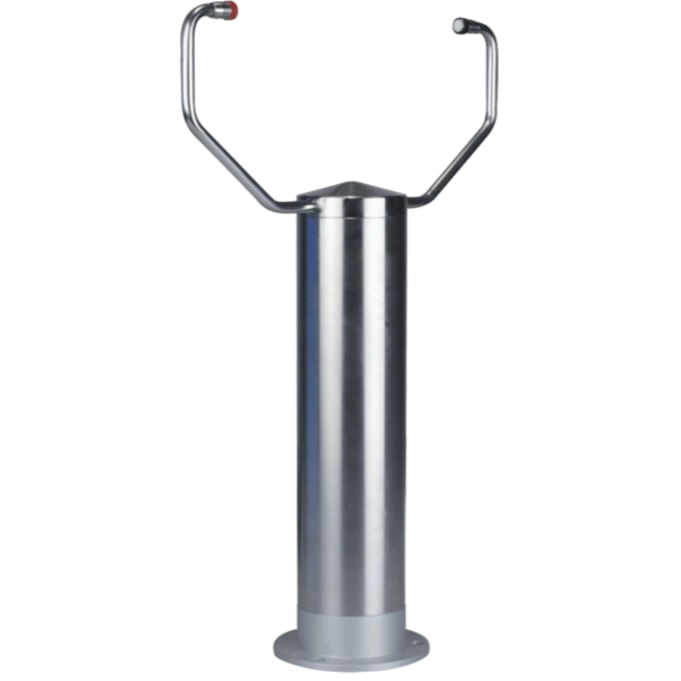

Ultrasonic Anemometer 1D 4.3865.0x

Item Number

4.3865.0x.xxx

Description

Ultrasonic anemometers allow the measurement of quickly changing wind parameters thanks to the acoustic measuring principle. The horizontal direction (within 180 degrees) and both gust and peak wind speed values are acquired inertia-free with the highest precision. The measurement values can be transmitted digitally and/or in analog form. The serial or analog output of the data is carried out as an instantaneous value or alternatively with a selectable time frame. If necessary, the sensor arms are automatically heated when ambient temperatures reach potential icing levels.

Tech Data

Measures wind speed (0…75 m/s) and horizontal direction (180º)
Heated sensor arms
Dimensions 43 x 29cm
Weight 2.5kg

Application

Meteorology, Climate Measuring Network, Wind Power Plant, Research and Development
