  • temperature transmitter TT-ST-R-100 image1 Data Sheet

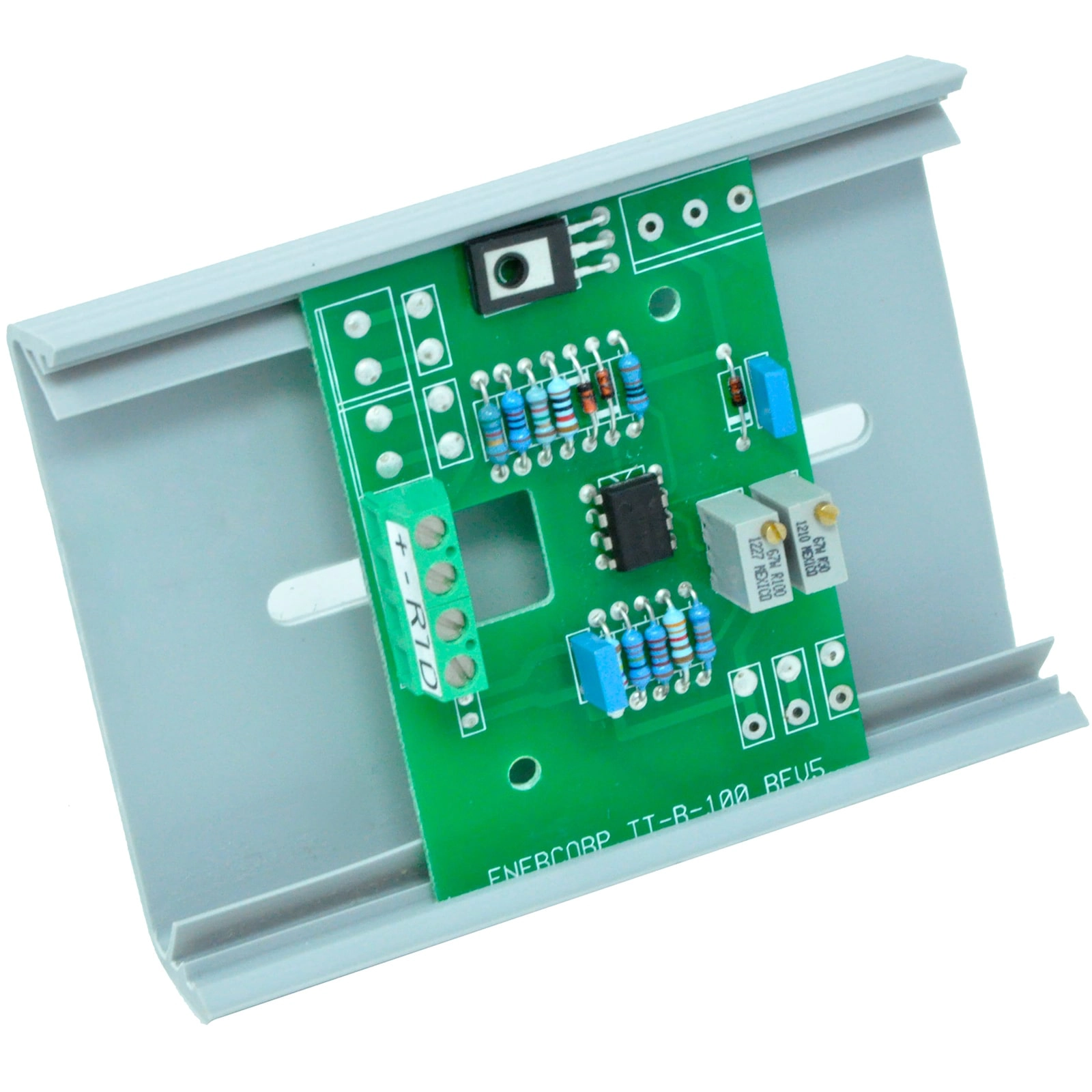

    Temperature Transmitter RTD PT100 TT-ST-R-100/-5050

    Technical Product Specification

    Range: -50…50ºC
    Supply voltage: 15…30 VDC
    Accuracy: 1%
    Mounting: snap track

    Description

    The TT-ST-R-100 is used to convert a 2 wire platinum RTD temperature sensor to a 4…20mA signal and is mounted on snap track. The output is proportional over a selected span and a diode protects against reverse polarity.

  • temperature transmitter TT-ST-R-100 image1 Data Sheet

    Temperature Transmitter RTD PT100 TT-ST-R-100/050

    Technical Product Specification

    Range: 0…50ºC
    Supply voltage: 15…30 VDC
    Accuracy: 1%
    Mounting: snap track

    Description

    The TT-ST-R-100 is used to convert a 2 wire platinum RTD temperature sensor to a 4…20mA signal and is mounted on snap track. The output is proportional over a selected span and a diode protects against reverse polarity.

  • temperature transmitter TT-ST-R-100 image1 Data Sheet

    Temperature Transmitter RTD PT100 TT-ST-R-100/0100

    Technical Product Specification

    Range: 0…100ºC
    Supply voltage: 15…30 VDC
    Accuracy: 1%
    Mounting: snap track

    Description

    The TT-ST-R-100 is used to convert a 2 wire platinum RTD temperature sensor to a 4…20mA signal and is mounted on snap track. The output is proportional over a selected span and a diode protects against reverse polarity.

  • temperature transmitter TT-BB-R-100 image1 Data Sheet

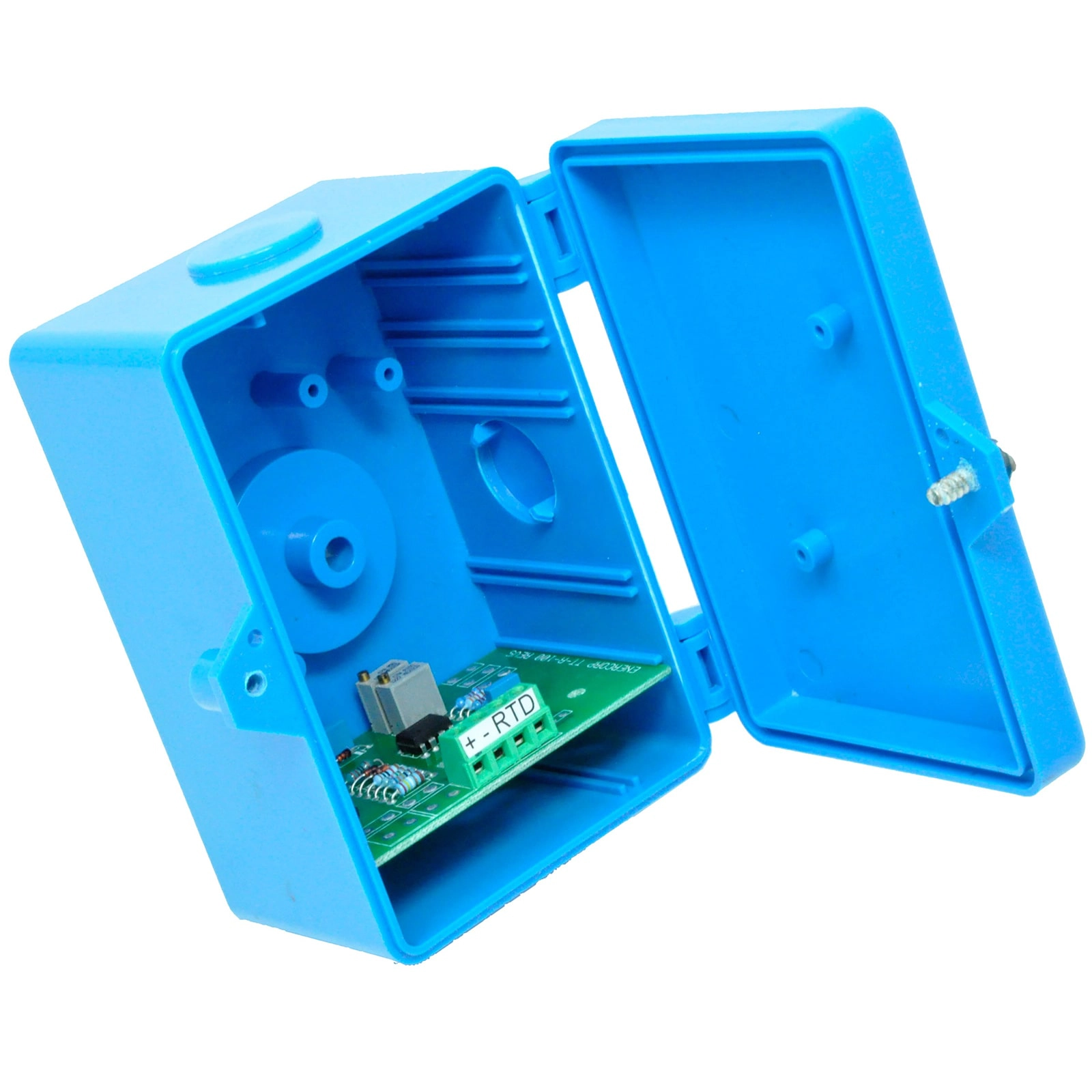

    Temperature Transmitter RTD PT100 TT-BB-R-100/-5050

    Technical Product Specification

    Range: -50…50ºC
    Supply voltage: 15…30 VDC
    Accuracy: 1%
    Mounting: blue box

    Description

    The TT-BB-R-100 is used to convert a 2 wire platinum RTD temperature sensor to a 4…20mA signal and is mounted in a energy management box. The output is proportional over a selected span and a diode protects against reverse polarity.

  • temperature transmitter TT-BB-R-100 image1 Data Sheet

    Temperature Transmitter RTD PT100 TT-BB-R-100/050

    Technical Product Specification

    Range: 0…50ºC
    Supply voltage: 15…30 VDC
    Accuracy: 1%
    Mounting: blue box

    Description

    The TT-BB-R-100 is used to convert a 2 wire platinum RTD temperature sensor to a 4…20mA signal and is mounted in a energy management box. The output is proportional over a selected span and a diode protects against reverse polarity.

  • temperature transmitter TT-BB-R-100 image1 Data Sheet

    Temperature Transmitter RTD PT100 TT-BB-R-100/0100

    Technical Product Specification

    Range: 0…100ºC
    Supply voltage: 15…30 VDC
    Accuracy: 1%
    Mounting: blue box

    Description

    The TT-BB-R-100 is used to convert a 2 wire platinum RTD temperature sensor to a 4…20mA signal and is mounted in a energy management box. The output is proportional over a selected span and a diode protects against reverse polarity.

  • temperature transmitter TT-DR-R-100 050 image1 Data Sheet

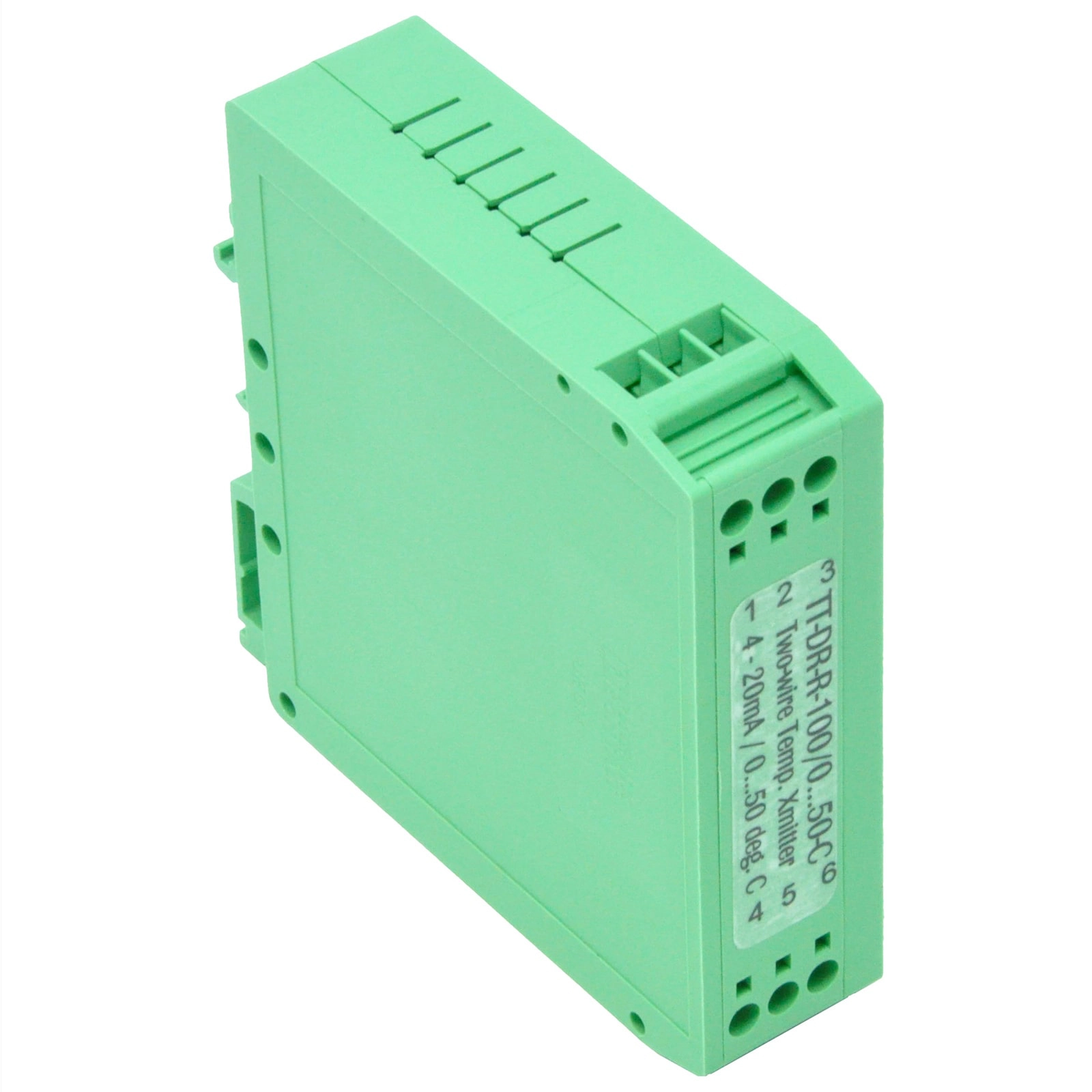

    Temperature Transmitter RTD PT100 TT-DR-R-100/050

    Technical Product Specification

    Range: 0…50ºC
    Supply voltage: 15…30 VDC
    Accuracy: 1%
    Mounting: DIN rail

    Description

    The TT-DR-R-100 is used to convert a 2 wire platinum RTD temperature sensor to a 4…20mA signal and is mounted in a DIN rail enclosure. The output is proportional over a selected span and a diode protects against reverse polarity.

  • temperature transmitter TT-DR-R-100 0100 image1 Data Sheet

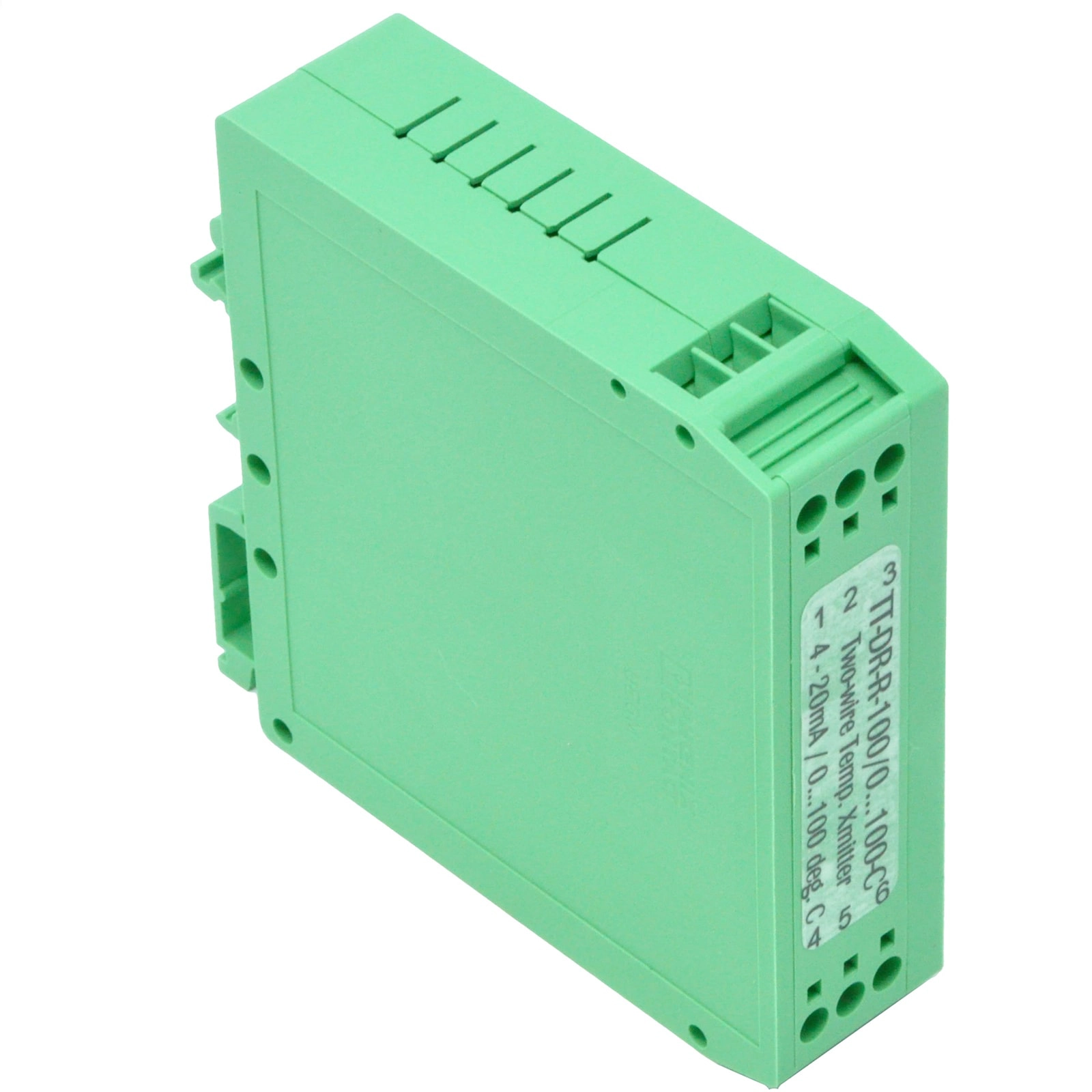

    Temperature Transmitter RTD PT100 TT-DR-R-100/0100

    Technical Product Specification

    Range: 0…100ºC
    Supply voltage: 15…30 VDC
    Accuracy: 1%
    Mounting: DIN rail

    Description

    The TT-DR-R-100 is used to convert a 2 wire platinum RTD temperature sensor to a 4…20mA signal and is mounted in a DIN rail enclosure. The output is proportional over a selected span and a diode protects against reverse polarity.
