Documentation

Technical Product Specification

dimensions: 9″ x 2″
weight: 3 lbs
includes cable 300

Description

This ram electrode-set is designed for making moisture measurements at different depths of hardwood, up to 5 1/2″ thick. This set includes the required 300 connecting cable.

Technical Product Specification

includes 200d, 225, 226 a, 226 b, 226 c

Description

This screw in electrode set includes: an adaptor cable; screw in electrode pair; expanding plugs; a carbide tipped drill and graphite powder. The graphite powder is to be used to assure good electrical contact of the expanding plugs.

Technical Product Specification

needle length: 3/8″
weight: 1½ oz

Description

This 3/8″ needle electrode is designed for depth measurements of painted wood, furniture, plaster walls, wood and cement.

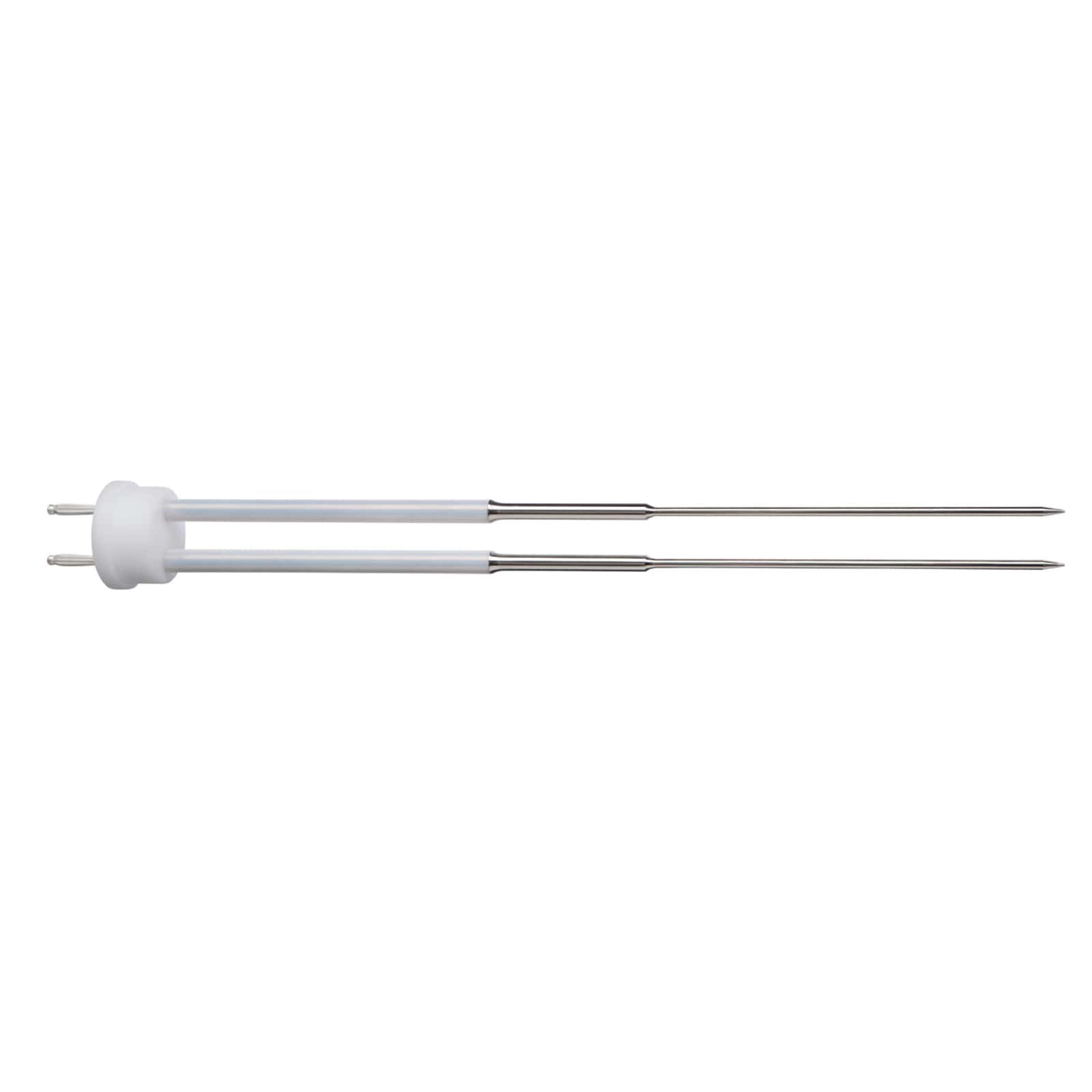

Technical Product Specification

needle length: 0.06″
weight: 1½ oz

Description

This 0.06″ needle electrode is specifically designed for the measurement of veneers and cardboard.

Technical Product Specification

needle length: 12¾”
insulated shank: 1⅜”
weight: 5 oz

Description

This 12 3/4″ stab electrode has thinner needle points at the end. Designed to measure goods in sack and bales such as: excelsior, sawdust, yar, coffee beans, cacao beans, cereals and paper waste.

Technical Product Specification

needle length: 12¾”
insulated shank: 1⅜”
weight: 7 oz
more durable than 209a

Description

This 12 3/4″ stab electrode has even thickness needle points the entire length. Designed to measure goods in sack and bales such as: excelsior, sawdust, yar, coffee beans, cacao beans, cereals and paper waste.

Technical Product Specification

needle length: 12¾”
insulated shank: 1⅜”
weight: 5¾oz
isolation shaft present

Description

This 12 3/4″ stab electrode has an isolation shaft. Designed specifically to measure fishmeal.

Technical Product Specification

piercing point: 3″
insulated shank: 7″
weight: 8 oz

Description

This cotton electrode has 3″ piercing points designed to measure goods in sack and bales. This electrode is specifically designed for measuring cotton or similar product
