Socket Type 222 Rated 32A: Black 8772220100
Technical Product Specification
Design current: 32 Amp
Temperature stability: 80ºC
Working voltage: 1600 V
Colour: blackDescription
These high quality sockets feature very low resistance and great durability. They are designed for use in test facilities, laboratory facilities and in bushings for transformers and chokes.
-
Socket Type 222 Rated 32A: Red 8772220200
Technical Product Specification
Design current: 32 Amp
Temperature stability: 80ºC
Working voltage: 1600 V
Colour: redDescription
These high quality sockets feature very low resistance and great durability. They are designed for use in test facilities, laboratory facilities and in bushings for transformers and chokes.
-
Socket Type 222 Rated 32A: Yellow/ Green 8772220900
Technical Product Specification
Design current: 32 Amp
Temperature stability: 80ºC
Working voltage: 1600 V
Colour: yellow/ greenDescription
These high quality sockets feature very low resistance and great durability. They are designed for use in test facilities, laboratory facilities and in bushings for transformers and chokes.
-
Oiltight Lead-Through Bolts, Type 421, 8774210100
Technical Product Specification
Design current: 16 Amp
Temperature stability: 100ºC
Working voltage: 1000 V
Testing voltage: 3200 VDescription
These high quality sockets feature very low resistance and great durability. They are designed for use in test facilities, laboratory facilities and in bushings for transformers and chokes.
-

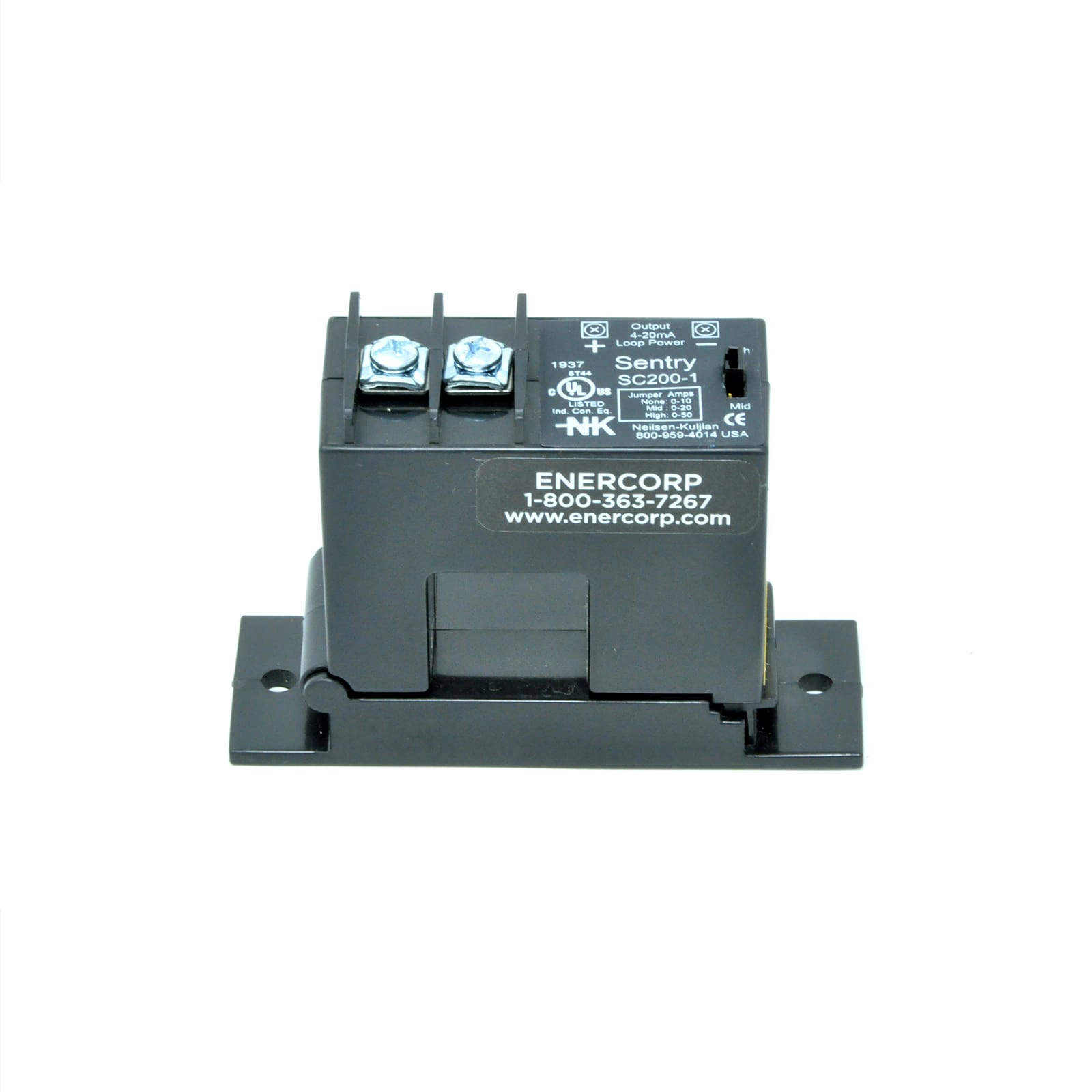

Split Core Current Transducer SC200-1
Technical Product Specification
Input ranges: 0…10 Amp, 0…20 Amp, 0…50 Amp
Output signal: 4…20mA
Power supply required: 12…40 VDC
Sensing aperture: 0.85” sq.
VFI technology: no
Approvals: UL, ULC, CEDescription
The SC200-1 split core current transducer is AC field selectable with 0…10, 0…20 and 0…50 Amp range and 4…20mA DC output. The split core opens and is designed for ease of installation and retrofit applications.
-

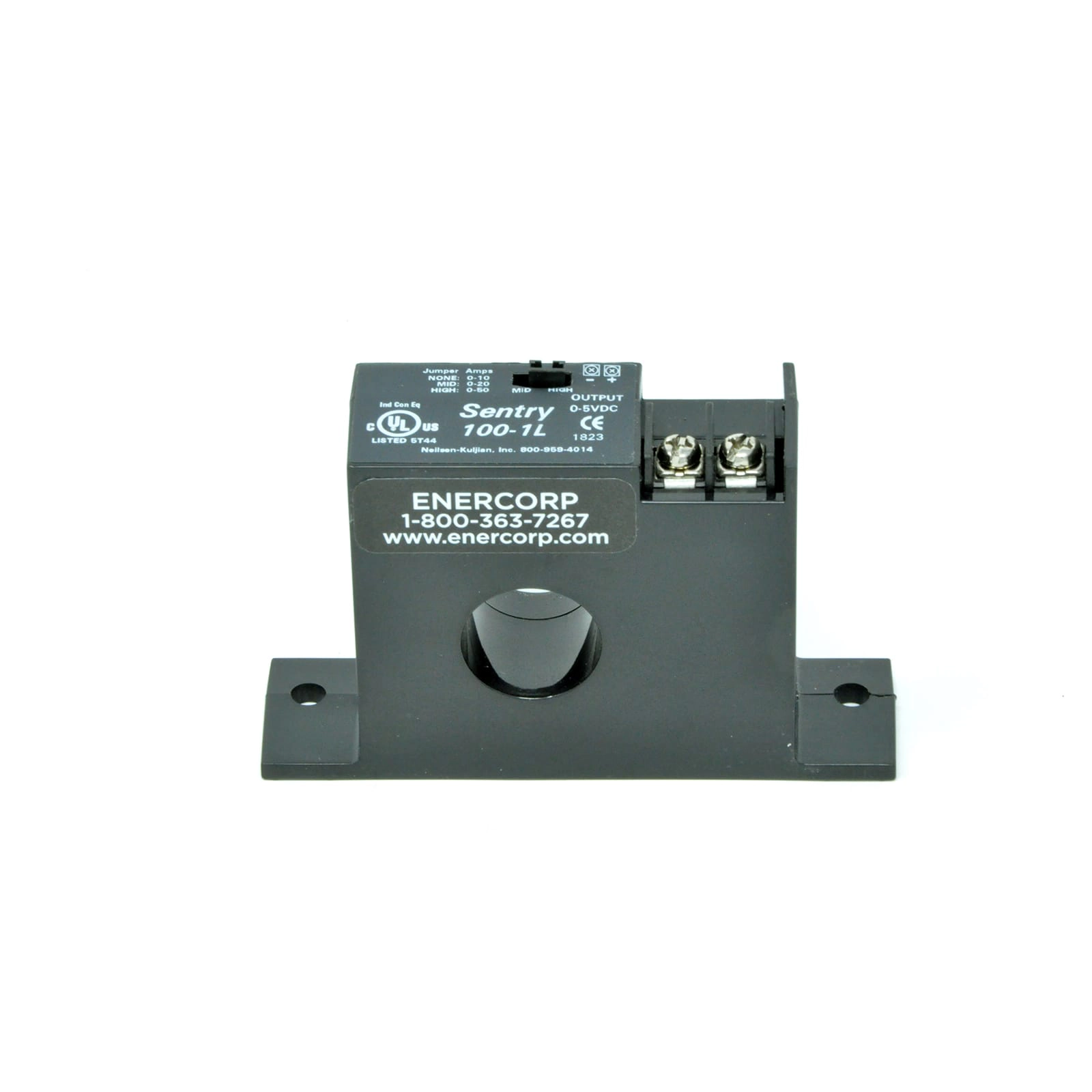

Solid Core Current Transducer SENTRY 100-1L
Technical Product Specification
Input ranges: 0…10 Amp, 0…20 Amp, 0…50 Amp
Output signal: 0…5 VDC
Power supply required: none, self powered
Sensing aperture: 0.75” dia.
VFI technology: no
Approvals: UL, ULC, CEDescription
The SENTRY 100-1L solid core current transducer is AC field selectable with 0…10, 0…20, 0…50 Amp range and 0…5 VDC output. The casing of the current sensor is solid and wiring must be fed through the opening.
-

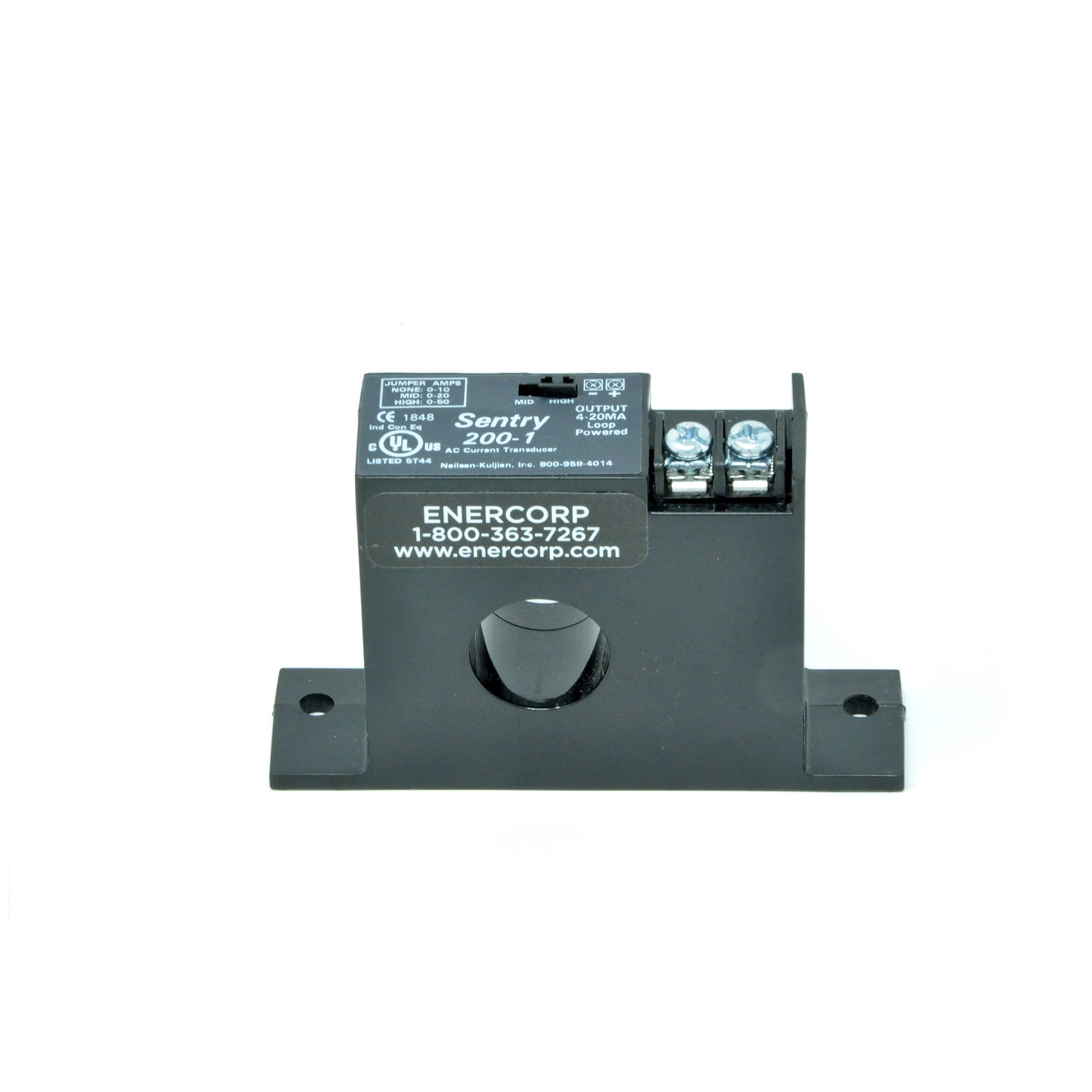

Solid Core Current Transducer SENTRY 200-1
Technical Product Specification
Input ranges: 0…10 Amp, 0…20 Amp, 0…50 Amp
Output signal: 4 to 20mA
Power supply required: 12…40 VDC
Sensing aperture: 0.75” dia.
VFI technology: no
Approvals: UL, ULC, CEDescription
The SENTRY 200-1,solid core current transducer is AC field selectable with 0…10, 0…20 and 0…50 Amp range and 4…20mA DC output. The casing of the current sensor is solid and wiring must be fed through the sensing aperture.
-

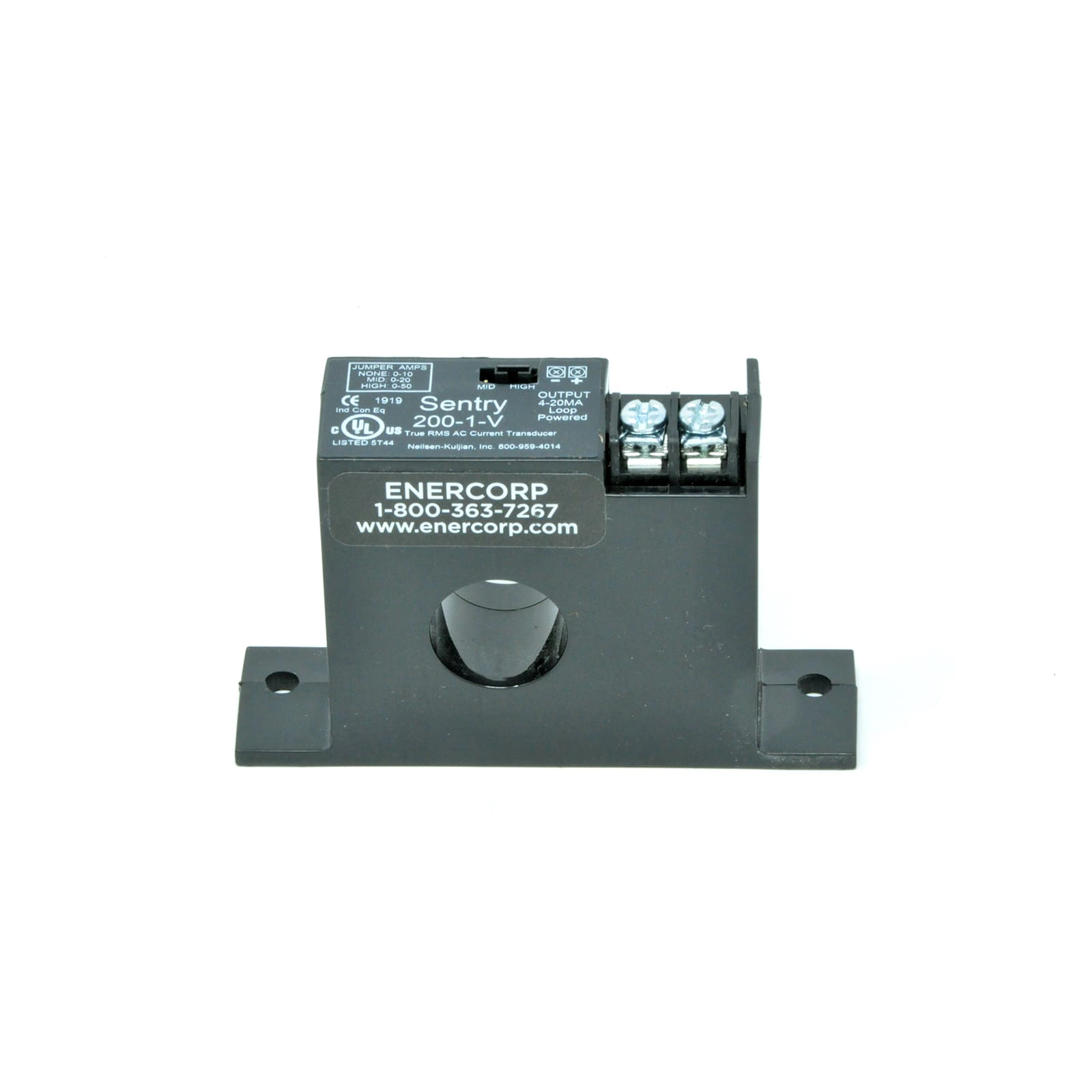

Solid Core Current Transducer SENTRY 200-1-V
Technical Product Specification
Input ranges: 0…10 Amp, 0…20 Amp, 0…50 Amp
Output signal: 4…20mA
Power supply required: 12…40 VDC
Sensing aperture: 0.75” dia.
VFI technology: yes
Approvals: UL, ULC, CEDescription
The SENTRY 200-1-V solid core current transducer is AC field selectable with 0…10, 0…20 and 0…50 Amp range and 4 – 20mA DC output and VFI technology. The casing of the current sensor is solid and wiring must be fed through the sensing aperture.
