Split Core Current Transducer SC200-05
Item Number
SC200-05
Description

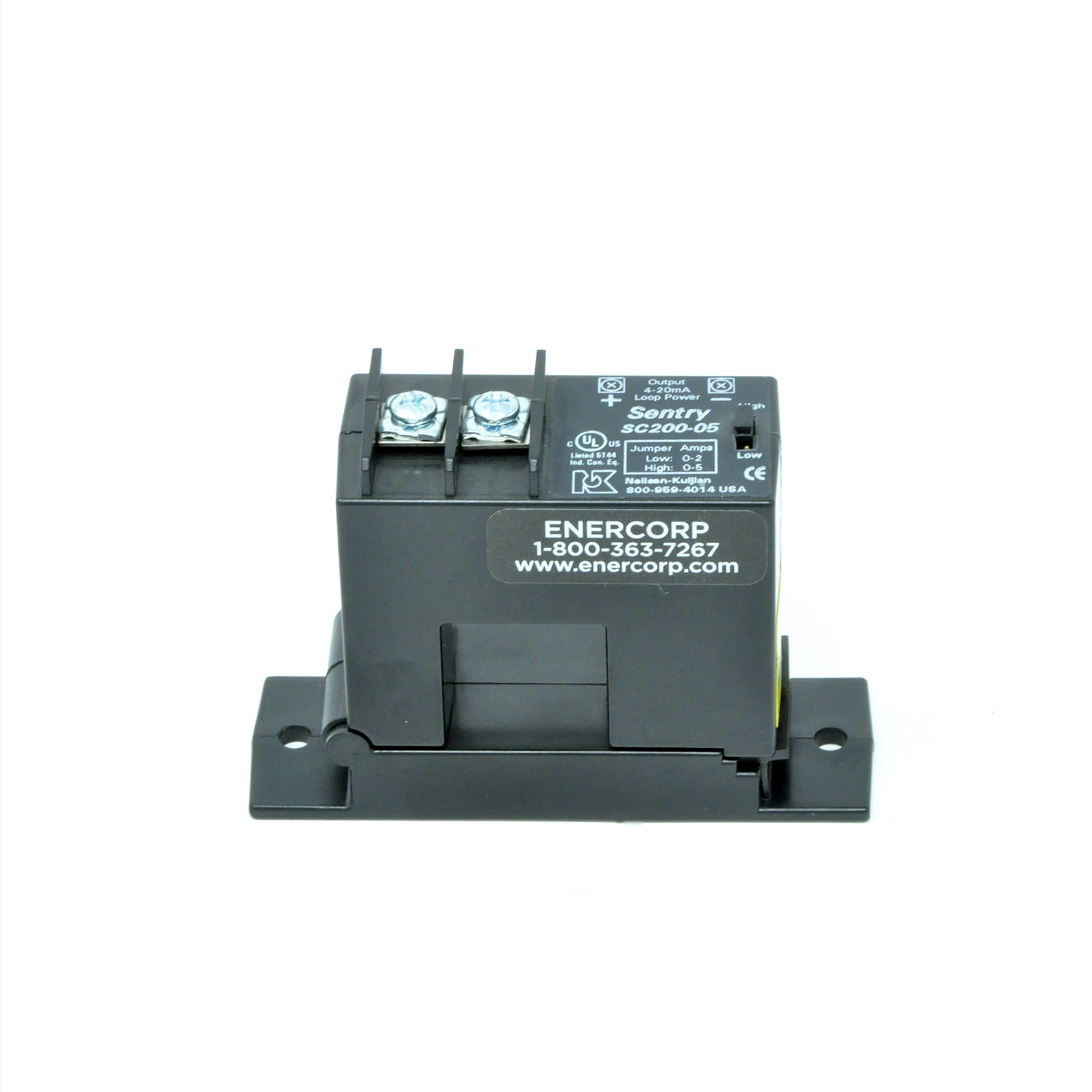

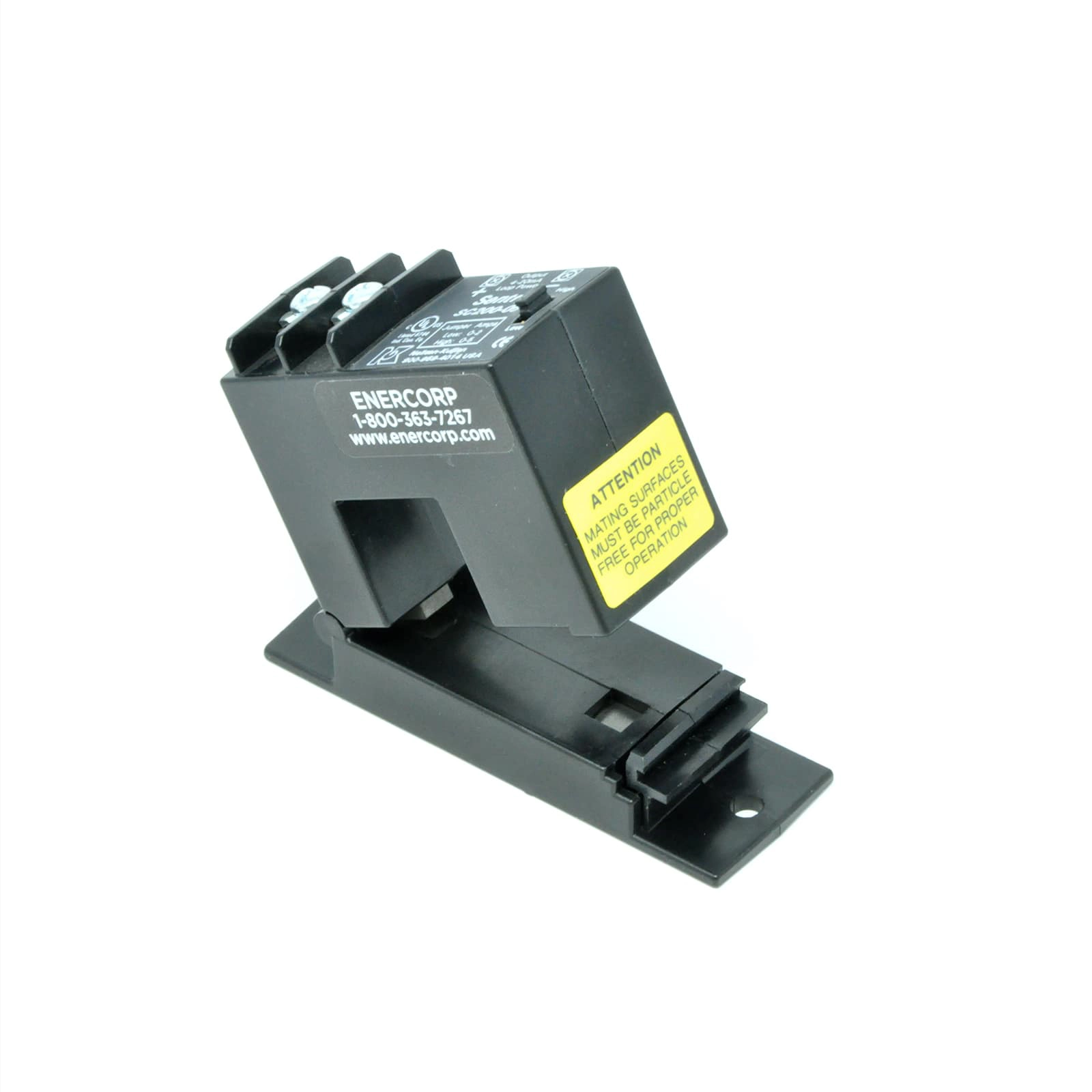

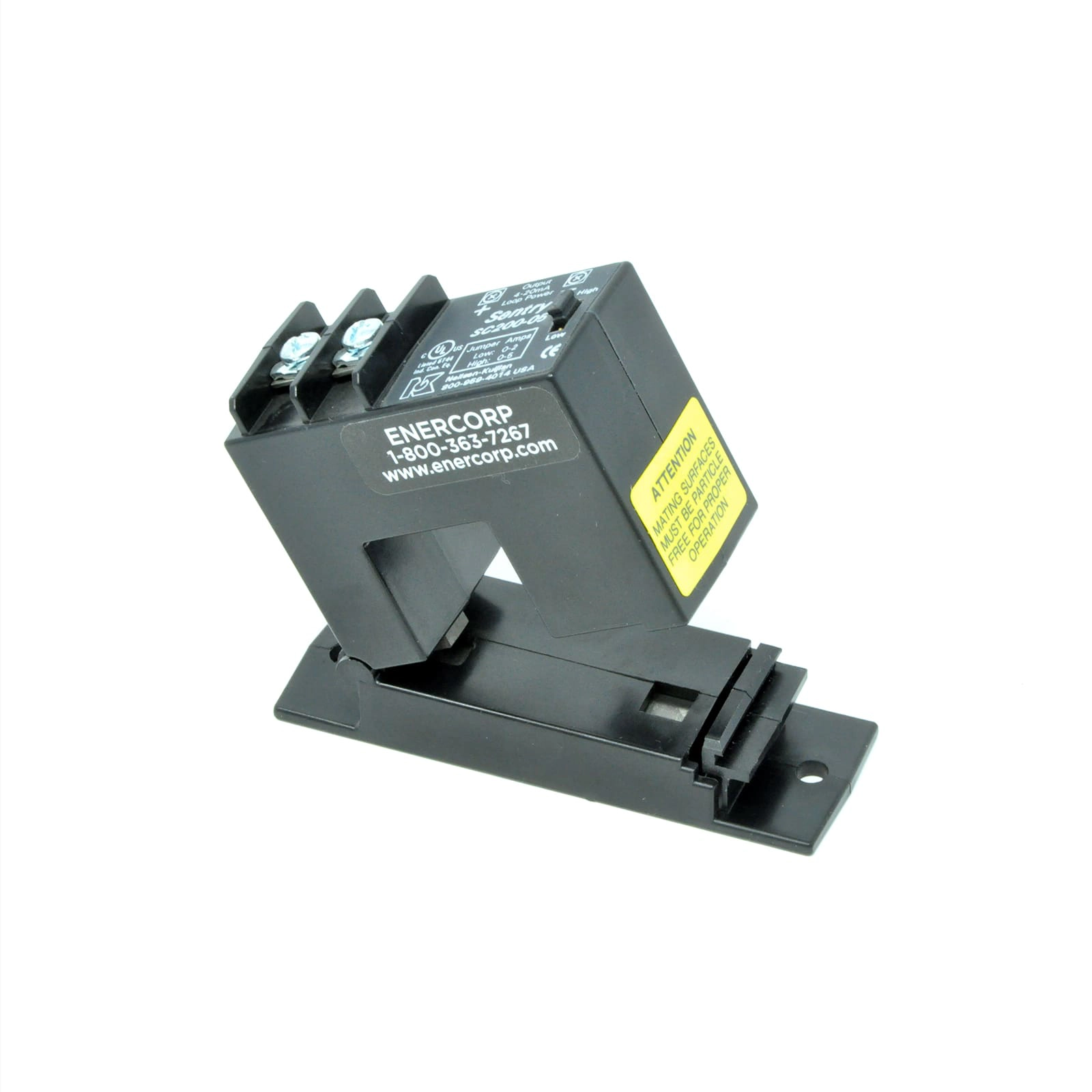

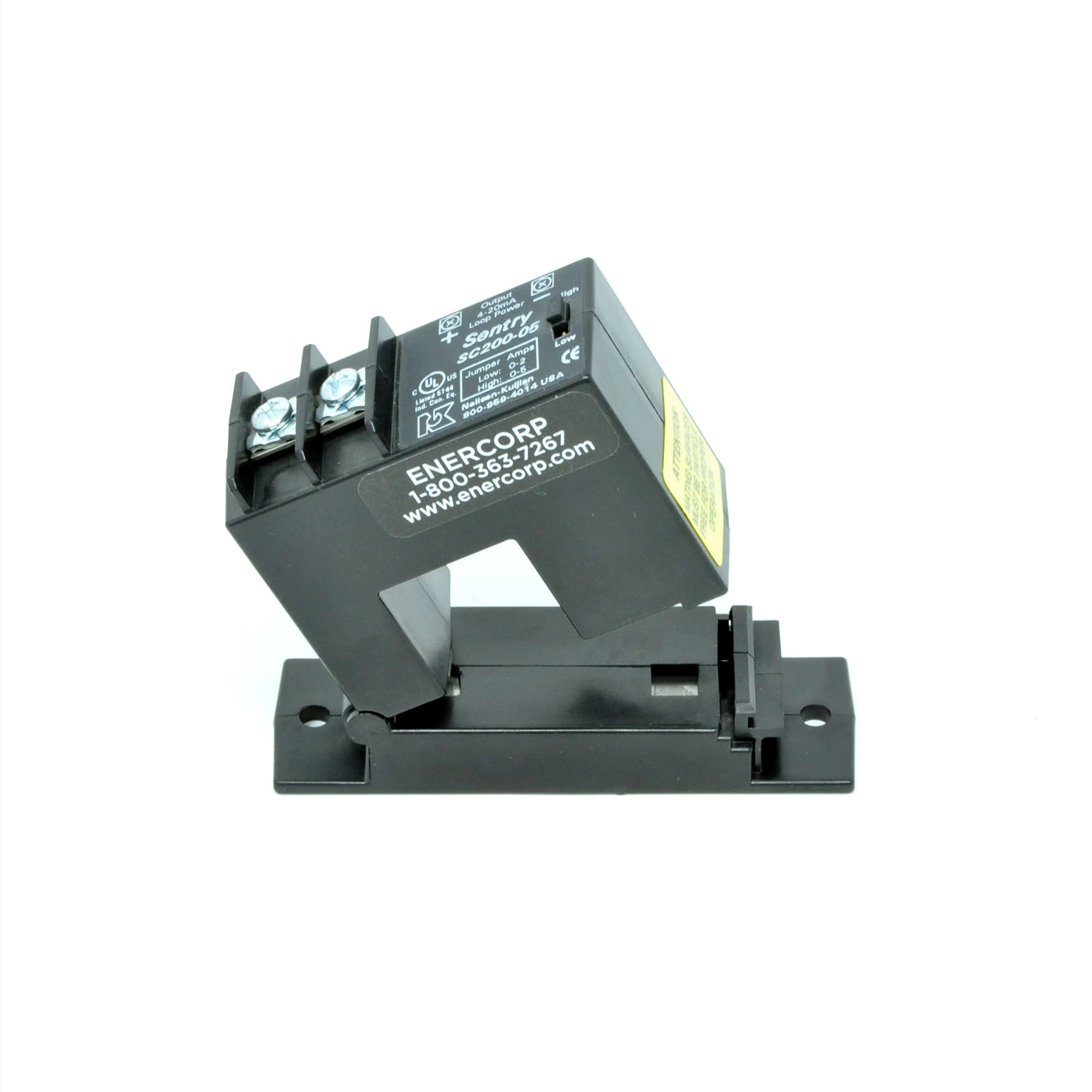

The SC200-05, split core current transducer is AC field selectable with 0…2 and 0…5 Amp range and 4…20mA DC output. The split core opens and is designed for ease of installation or retrofit applications.
Technical Data
Input ranges: 0…2 Amp, 0…5 Amp
Output signal: 4…20mA
Power supply required: 12…40 VDC
Sensing aperture: 0.85” sq.
VFI technology: no
Approvals: UL, ULC, CE
Split Core Current Transducer SC200-05
9 in stock
