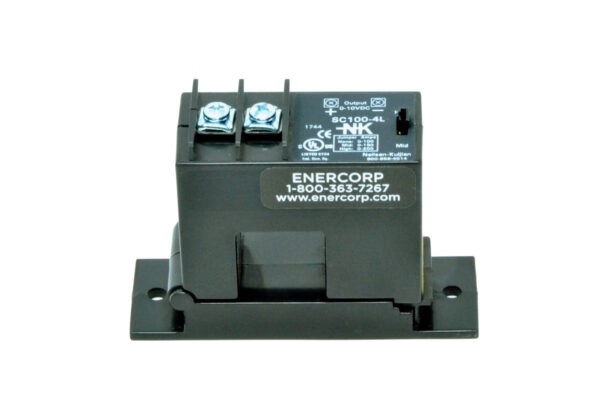

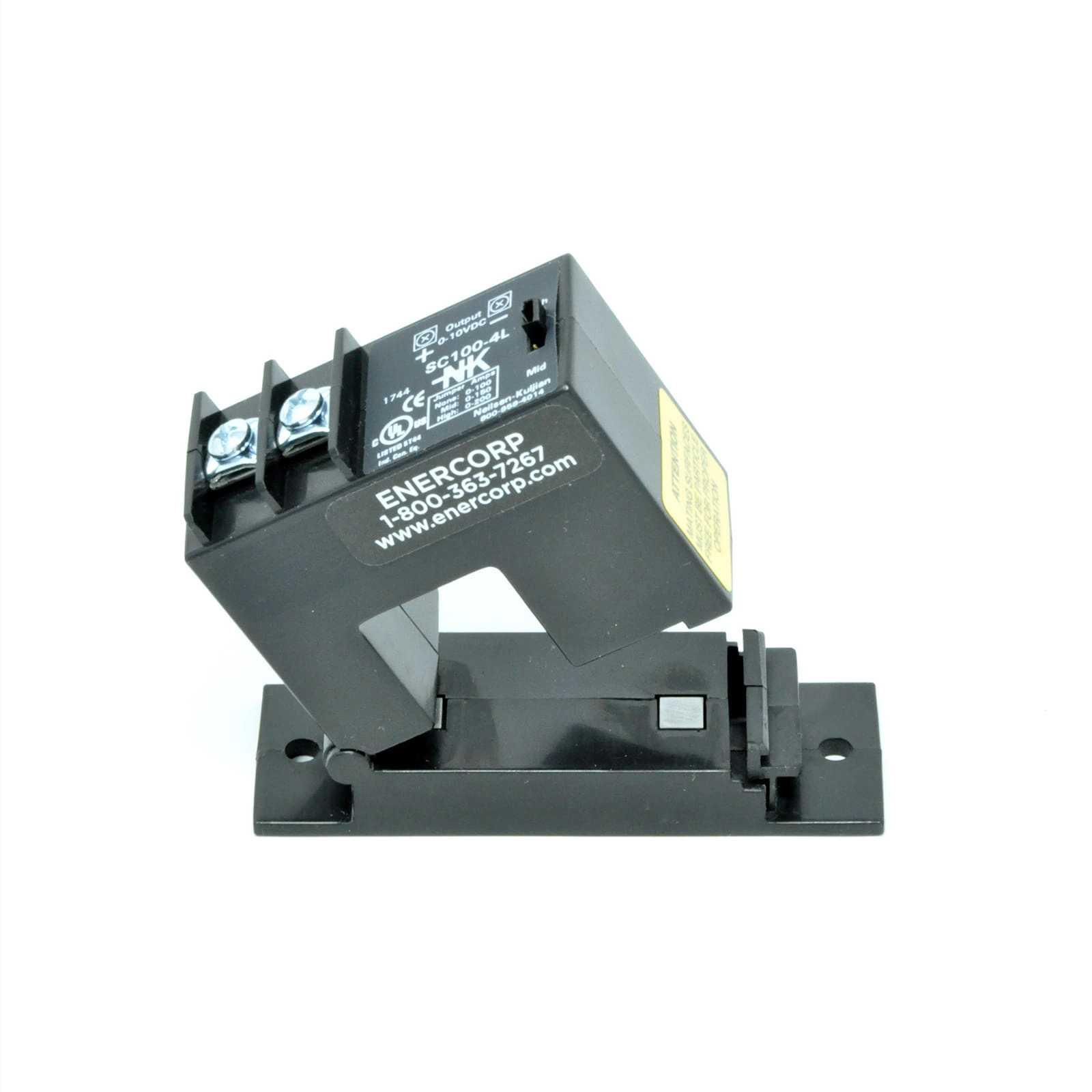

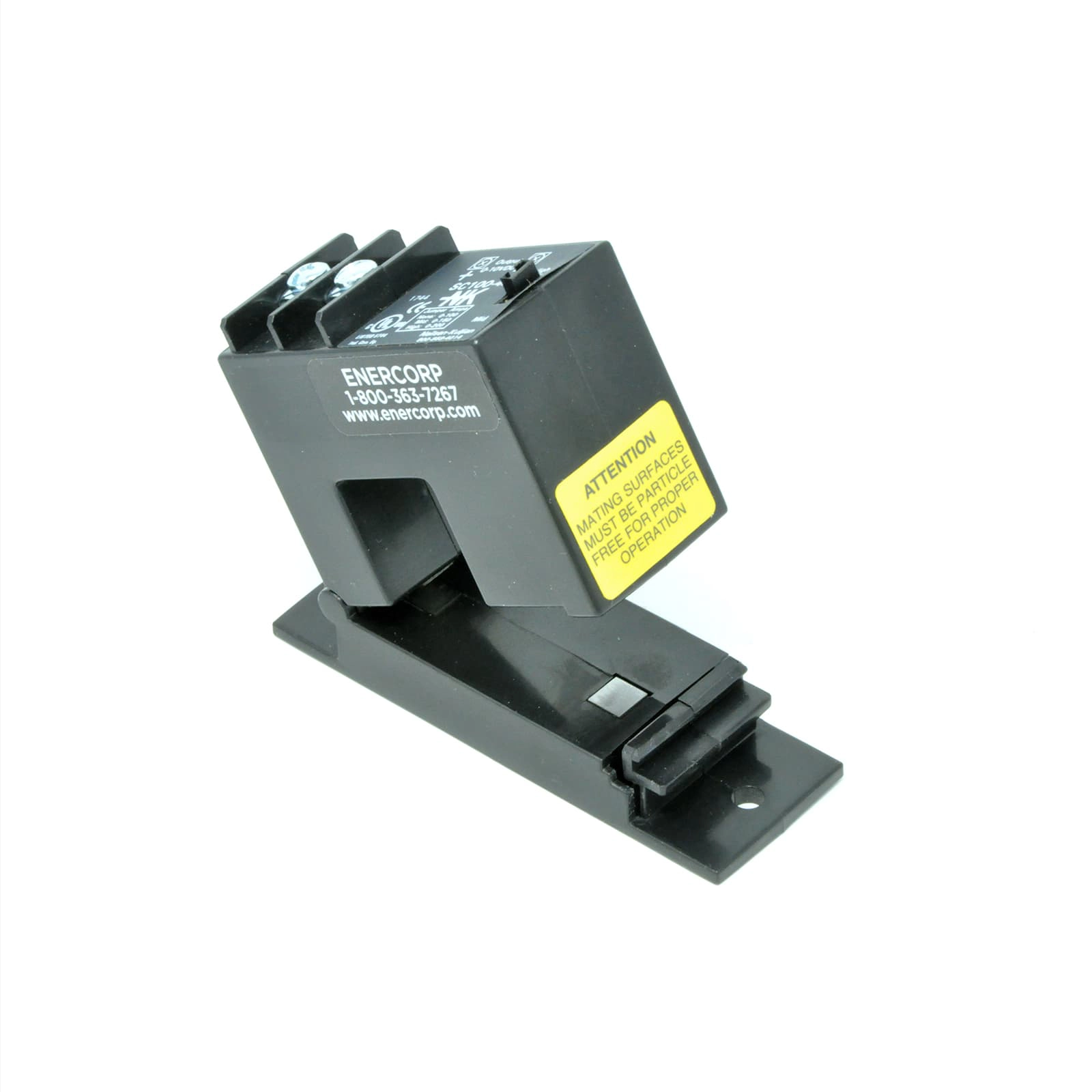

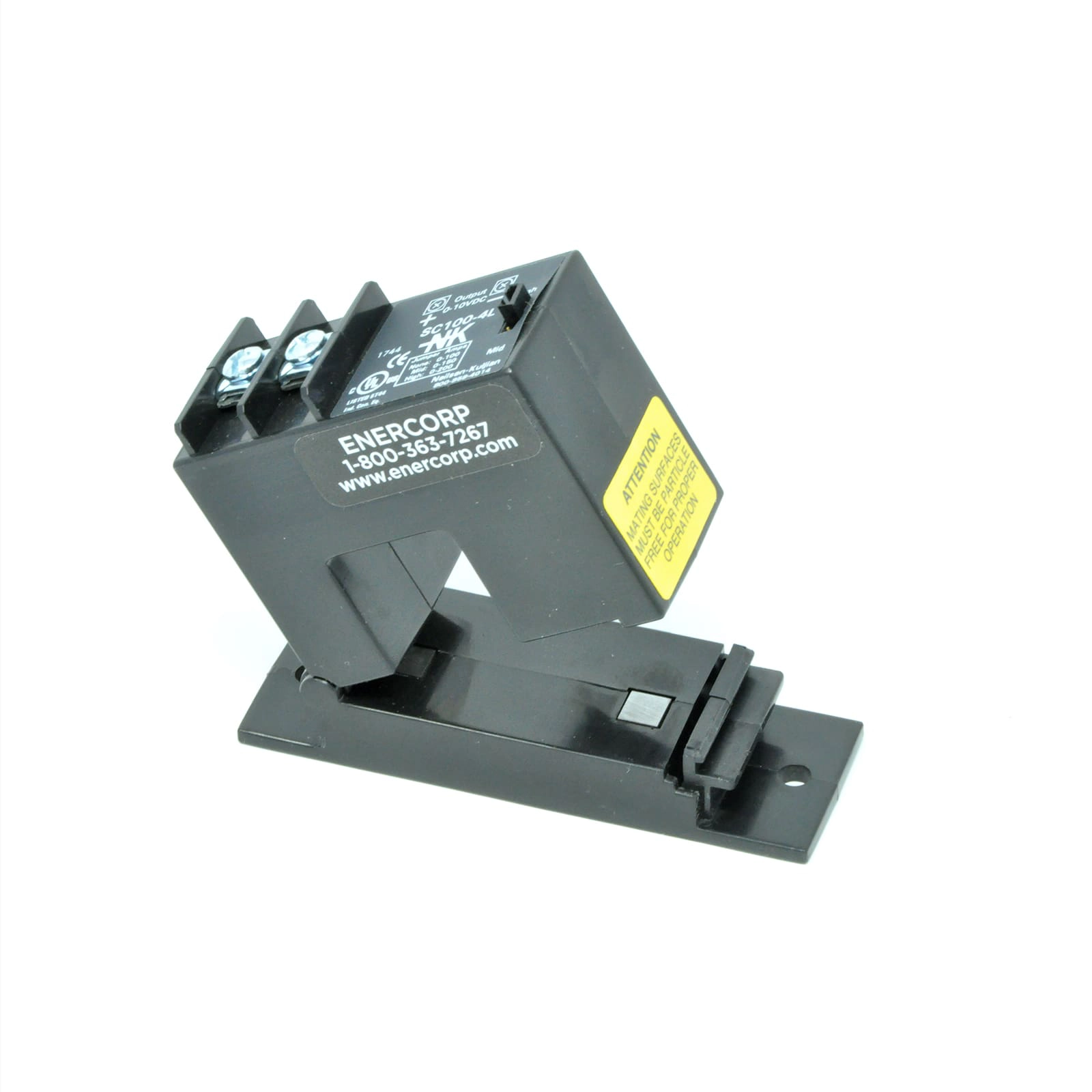

Split Core Current Transducer SC100-4L
Item Number
SC100-4L
Description
The SC100-4L split core current transducer is AC field selectable with 0…100, 0…150, 0…200 Amp range and 0…10 VDC output. The split core opens and is designed for ease of installation or retrofit applications.
Technical Data
Input ranges: 0…100 Amp, 0…150 Amp, 0…200 Amp
Output signal: 0…10 VDC
Power supply required: none, self powered
Sensing aperture: 0.85” sq.
VFI technology: no
Approvals: UL, ULC, CE
Split Core Current Transducer SC100-4L
5 in stock
