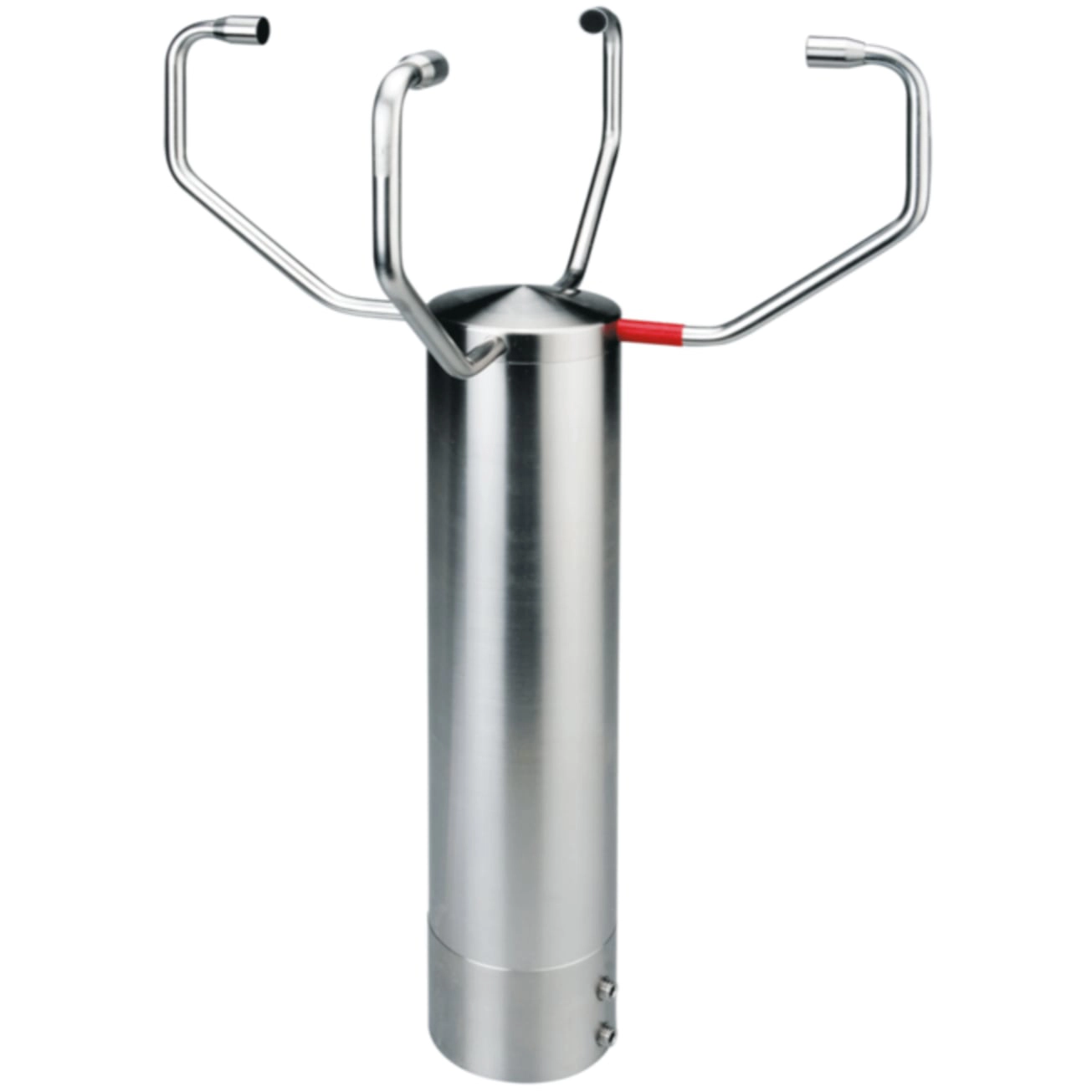

Ultrasonic Anemometer 2D 4.382.X.4x

Item Number

4.382x.4x.xxx

Description

Ultrasonic anemometers allow the measurement of quickly changing wind parameters thanks to the acoustic measuring principle. The horizontal direction of a full 360 degrees and both gust and peak wind speed values are acquired inertia-free with the highest precision. The measurement values can be transmitted digitally and/or in analog form. The serial or analog output of the data is carried out as an instantaneous value or alternatively with a selectable time frame. If necessary, the sensor arms are automatically heated in case of critical ambient temperatures, ensuring that the possibility of malfunction by icing is minimized. Thanks to the additionally installed ultrasonic converter heating, this model is suitable for locations where harsh and frequent icing is expected.

Tech data

Measures wind speed (0…85m/s) and direction (360º)
Heated sensor arms, transducers, and housing
Dimensions 43 x 29cm
Weight 2.5kg

Application/Usage

Meteorology, Climate Measuring Network, Wind Power Plant, Research and Development
