Documentation

Technical Product Specification

Measures wind direction (360º)
Heated housing
Dimensions 45 x 41cm
Weight 700g

Description

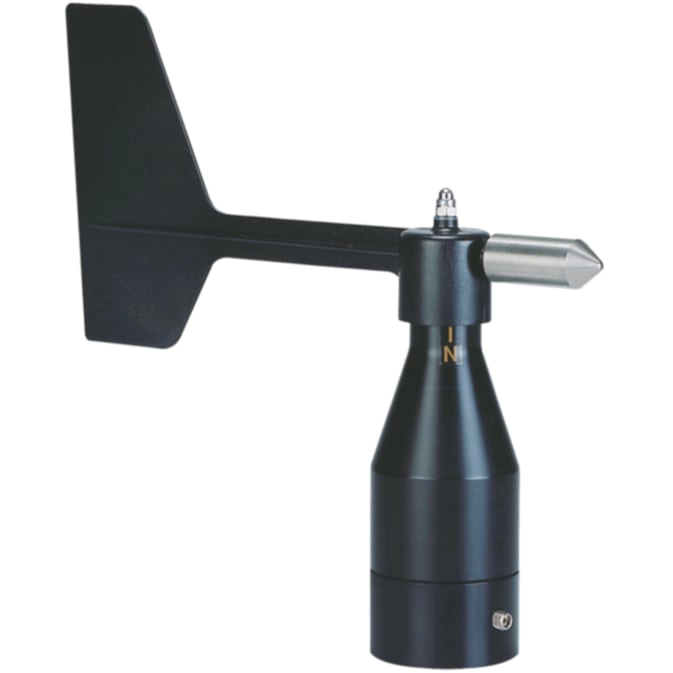

The First Class Wind Direction transmitter provides direction measurements that meet the stringent requirements of IEC 61400-12-1 (2005-12) for an instrument of the accuracy class 0.5. It is ideal for use in the field of meteorology and environmental measuring technology, evaluation of locations, and the measurement of capacity characteristics of wind power systems. The measuring value is available at the output as an analog signal. It can be transmitted to display instruments, recording instruments, data loggers, and process control systems. For winter operation the instrument is equipped with electronically regulated heating.

Technical Product Specification

Measures wind speed (0…75m/s)
Heated housing
Weight 500g

Description

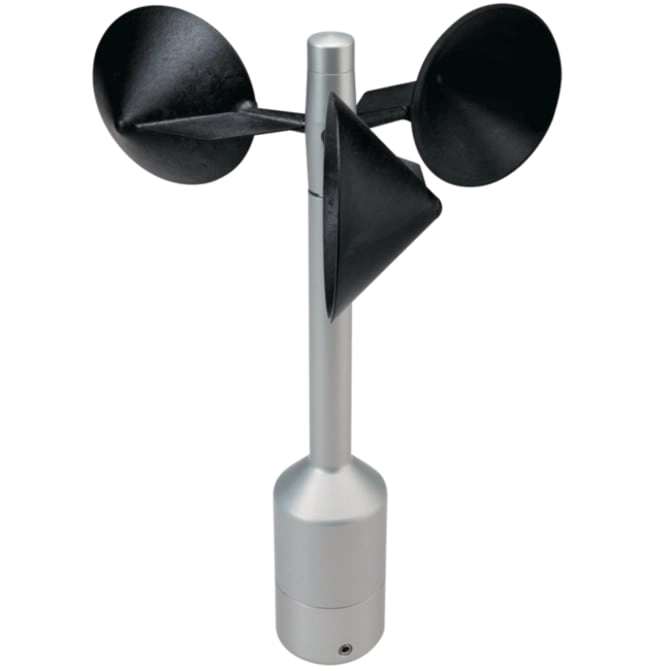

The First Class Wind Anemometer transmitter provides wind speed measurements that meet the stringent requirements of IEC 61400-12-1 (2005-12) for an instrument of the accuracy class 0.5. It is ideal for use in the field of meteorology and environmental measuring technology, evaluation of locations, and the measurement of capacity characteristics of wind power systems.This anemometer is designed to operate in dynamic wind conditions at high turbulence intensities. It is optimised to start at a low wind speed value and minimizes over-speeding. The measuring value is available as analog or rectangular digital output signals and can be transmitted to display instruments, recording instruments, data loggers as well as to process control systems. For winter operation the anemometer is equipped with electronically regulated heating.

Technical Product Specification

Measures wind speed (0…75m/s)
Without heating
Weight 500g

Description

The First Class Wind Anemometer transmitter provides wind speed measurements that meet the stringent requirements of IEC 61400-12-1 (2005-12) for an instrument of the accuracy class 0.5. It is ideal for use in the field of meteorology and environmental measuring technology, evaluation of locations, and the measurement of capacity characteristics of wind power systems. Special characters are a defined and optimised, dynamic behaviour also at high turbulence intensity, minimal over-speeding, and a low starting value. The measuring value is available at the output as digital signal. It can be transmitted to display instruments, recording instruments, data loggers as well as to process control systems.

Technical Product Specification

Measures wind direction (360º)
Heated housing

Description

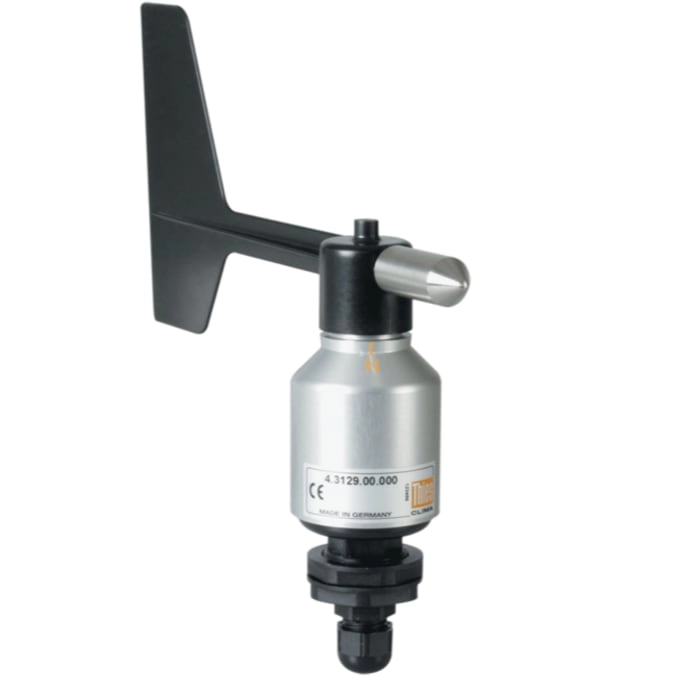

The Compact Wind Direction transmitter is designed for use in building technology systems, industrial power plants, wind power plants, and environmental protection; everywhere where precise weather data must be measured and converted for process control purposes. The different available output signals make this instrument compatible with many other innovative systems. The component materials were selected based upon their resilience under extreme conditions. The housings are made of seawater-impervious anodized aluminum and the cup-star and wind vane are made of glass fibre reinforced special plastic, making them extremely durable and resistant.

Technical Product Specification

Measures wind speed (0.5…50m/s)
Heated housing
Dimensions 14 x 17cm
Weight 750g

Description

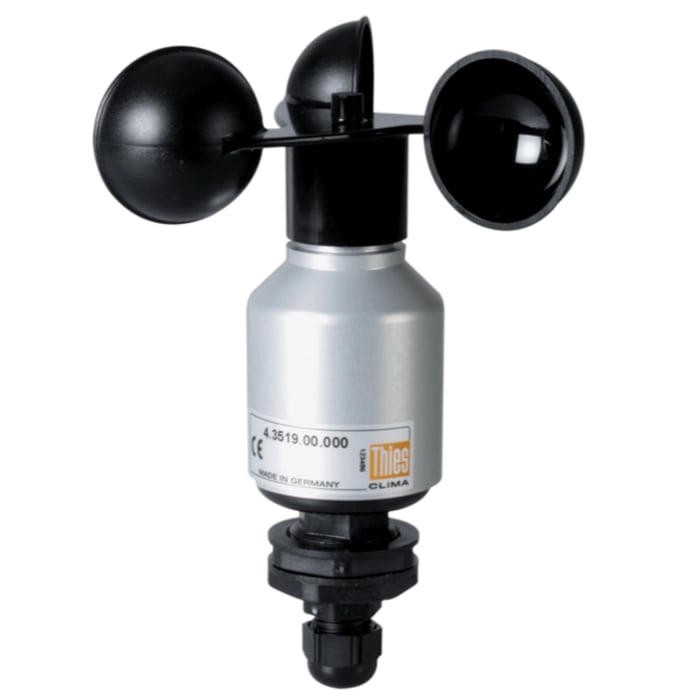

The Compact Wind Anemometer is designed for use in building technology systems, industrial power plants, wind power plants, and environmental protection; everywhere where precise weather data must be measured and converted for process control purposes. The different available output signals make this instrument compatible with many other innovative systems. The component materials were selected based upon their resilience under extreme conditions. The housings are made of seawater-impervious anodized aluminum and the cup-star and wind vane are made of glass fibre reinforced special plastic, making them extremely durable and resistant. This transmitter is specialized for use in mountainous terrain, polar climates, or at other critical sites where icing might be expected frequently. It provides all of the advantages of the compact design along with mitigating sub-zero temperature risk with its reinforced heating capability.

Technical Product Specification

Measures wind direction (360º)
Dimensions 20 x 21cm
Weight 550g

Description

The Small Wind Direction transmitter is an ideal instrument for requirements where high-calibre performance must be achieved without a premium cost. This instrument is applicable for measuring the horizontal direction of wind. It is of small construction and uses a potentiometer or Reed-contact that corresponds to the position of the wind vane to provide accurate directional data. The wind vane is constructed of reinforced fibreglass, a plastic shaft, and an aluminum mast.

Technical Product Specification

Measures wind speed (0.9…40m/s)
Dimensions 14 x 18cm
Weight 300g

Description

The Small Wind Anemometer transmitter is an ideal instrument for requirements where high-calibre performance must be achieved without a premium cost. This instrument is applicable for the direction-independent measurement of horizontal air. The sensor is a small construction with a Reed-contact, which is activated by the revolution of the cup star. The housing is made of synthetic material.

Technical Product Specification

Measures wind speed (1…40m/s), directions (10…350º), and air temperature (-25…60ºC)
Dimensions 33 x 42cm
Weight 1kg

Description

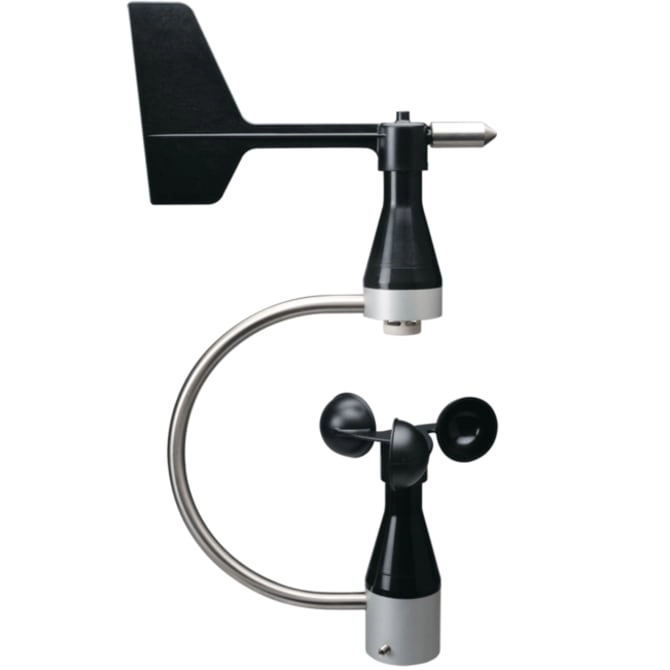

This compact Combi Wind and Temperature transmitter is an ideal option for quick installations and when space in the surrounding area is at a premium. It combines both wind direction and velocity measurement along with a temperature sensor in a sturdy and resistant housing. The wind vane, cup star, and housing consist partially of reinforced fibreglass, and the housing brackets and mast are constructed of stainless steel and aluminum.
