Documentation

Technical Product Specification

measuring scale: 9 – 30%
additional scale: centesimal
accuracy: +/- 0.1%
power supply: 9V battery
electrode 202 included in set

Description

The KAFIII-set is a highly accurate and portable moisture meter, specifically designed for coffee manufacturing. With instantaneous readings, a centesimal scale and compatible electrodes this device has numerous applications for the agricultural and food processing industry. This set includes the 202 cup electrode.

Technical Product Specification

Mounting: none
Inputs: communications, fan, gas, damper, alarm, casing
Accessories: 12 ft cable, to connect to DCS-4000-A or DCS-4000-C

Description

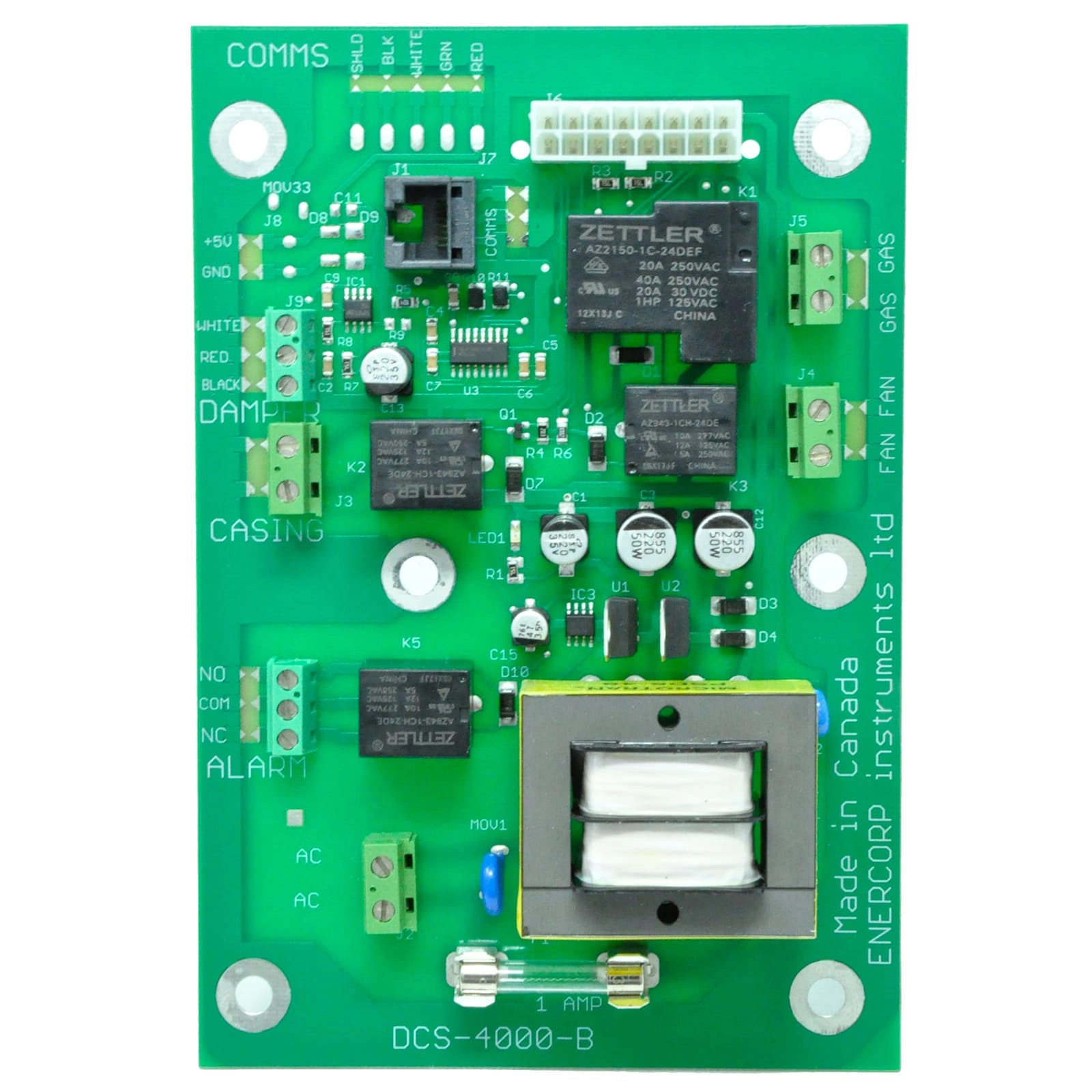

The DCS-4000-B is a PCB that hosts high-amperage relays and can be connected to the DCS-4000-A via a harness cable to simplify wiring. It also provides circuitry to enable wireless transmission when connected to the DCS-WTR.

Technical Product Specification

Lead length: 150”
Sensor type: Pt100 RTD
Operating temperature: 0…100ºC

Description

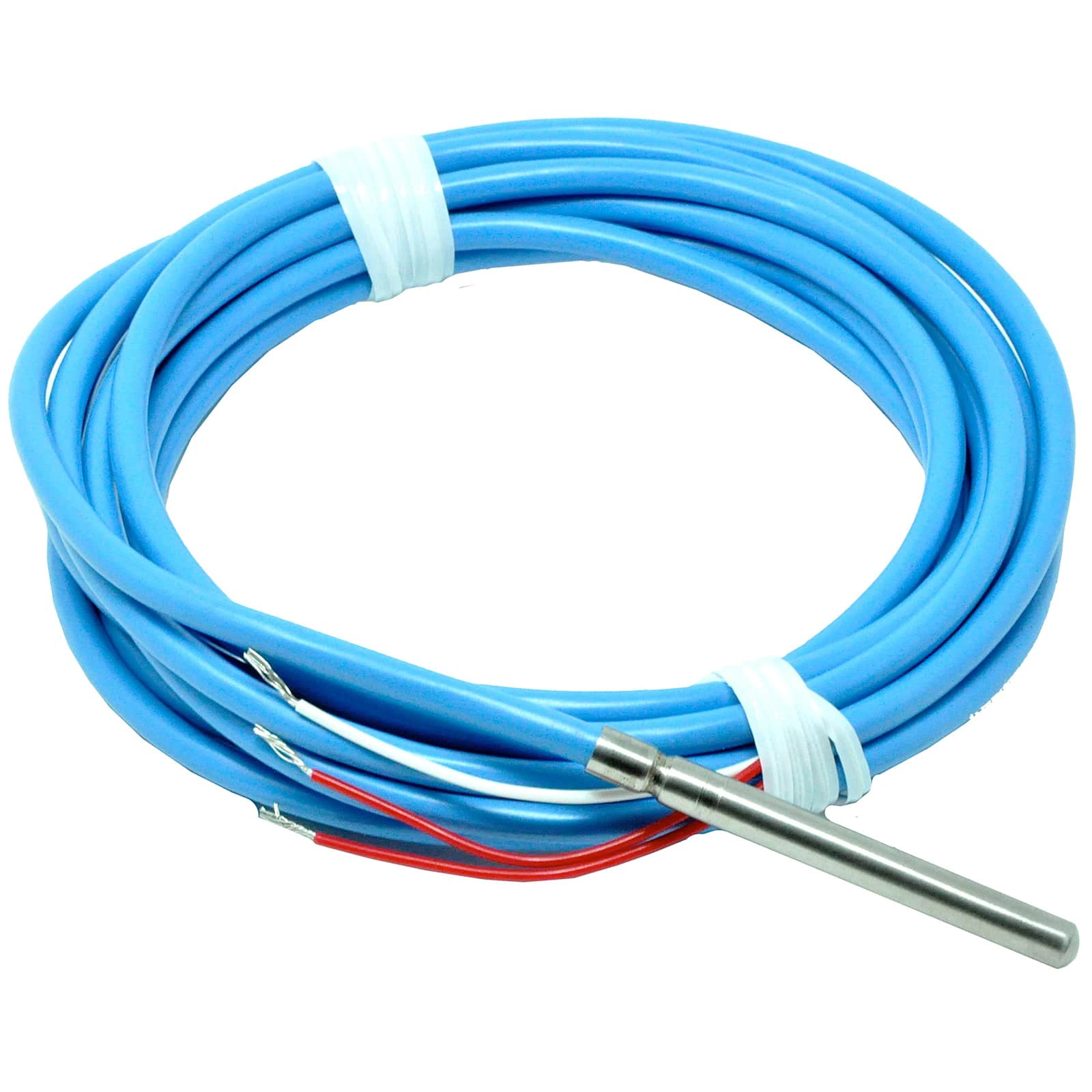

The RTD-D is used to read the temperature of your kiln which is then displayed on the DCS-4000 front board. We use platinum sensors enclosed in stainless steel for dry bulb measurement. These sensors have better long term stability than thermistors, allowing for longer life in the field.

Technical Product Specification

DCS-WTR-Kit includes: Wireless receiver
Power supply
PC interface for communication system

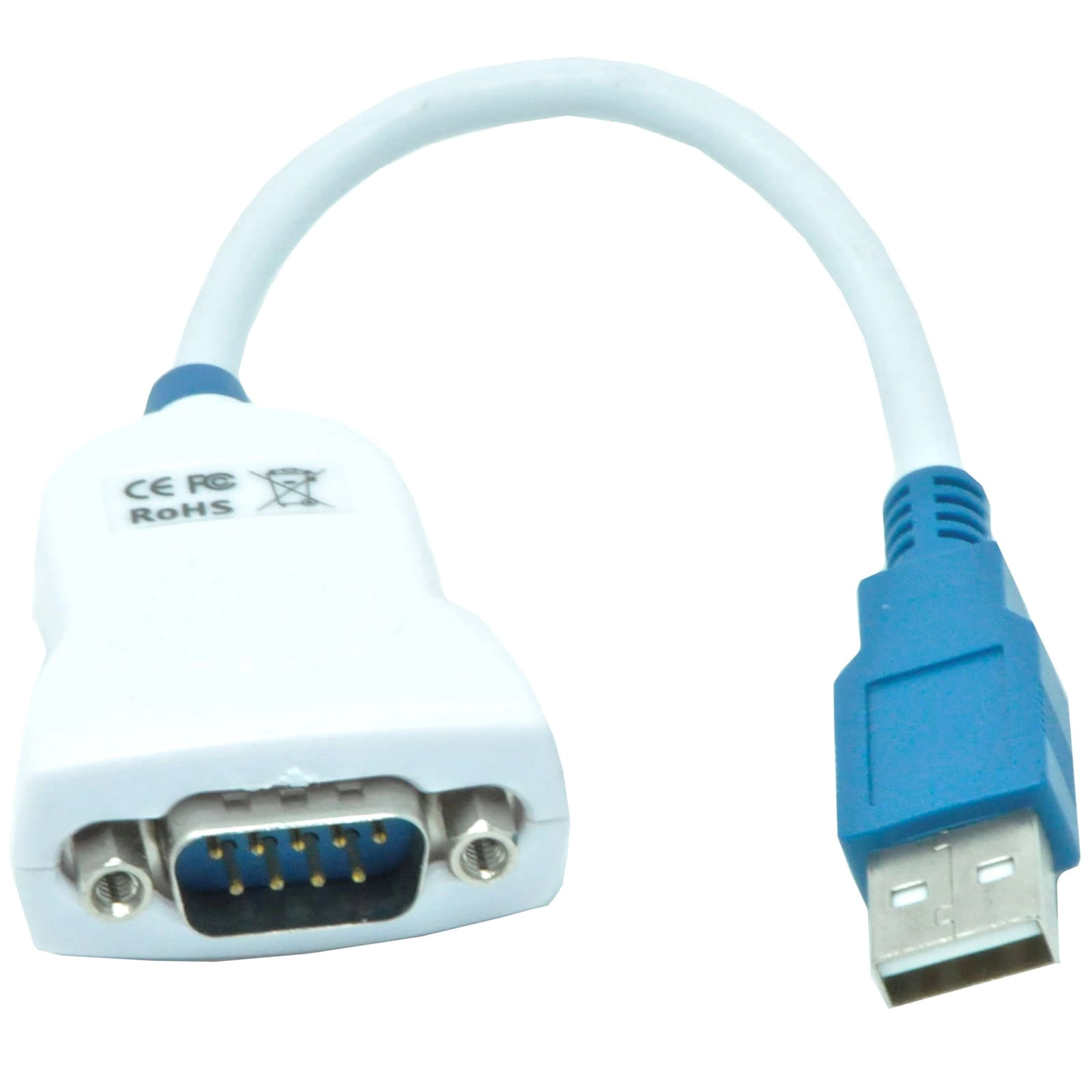

USB to serial adaptor
9F to 9M serial cable adaptor
Ethernet cable

Description

The DCS-WTR-KIT has everything you need to set up your home computer to receive communications from the kiln. In addition to a DCS-4000-A or DCS-4000-C, you must have a DCS-4000-B and DCS-WTR per kiln to be able to have communication functions enabled.

Technical Product Specification

Dimensions (LxWxH): 31/8” x 25/8” x 45/8”
Operating temperature: 0…85ºC
Accessories: UTP network cable included

Description

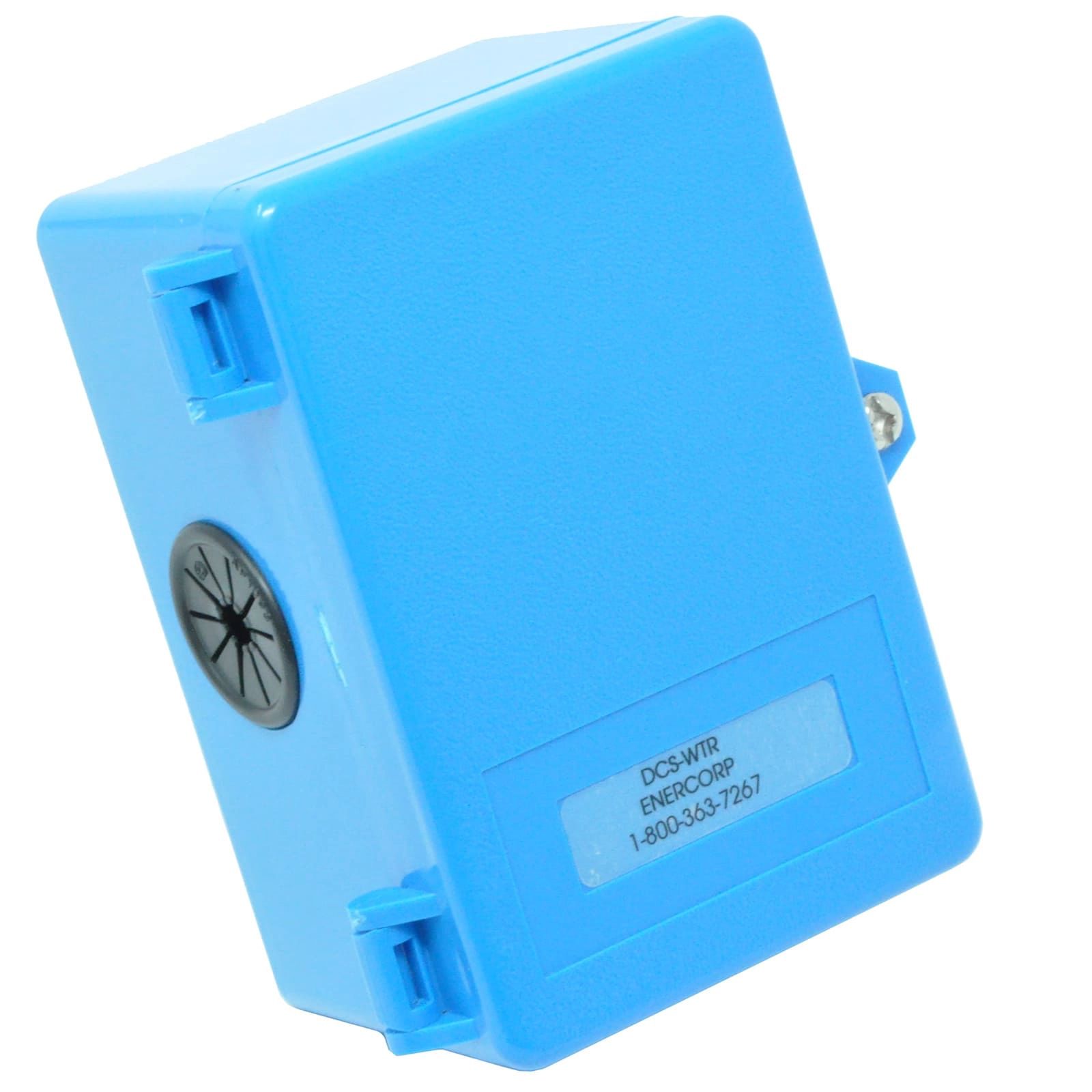

The DCS-WTR is a transmitter that is placed within the control panel of the kiln. When paired with the DCS-4000-B and the DCS-WTR-KIT, the DCS-WTR enables wireless communication capabilities. It will accept kiln operating data from the DCS-4000-B and transmit it to be received by our DCS-WTR–KIT.

Technical Product Specification

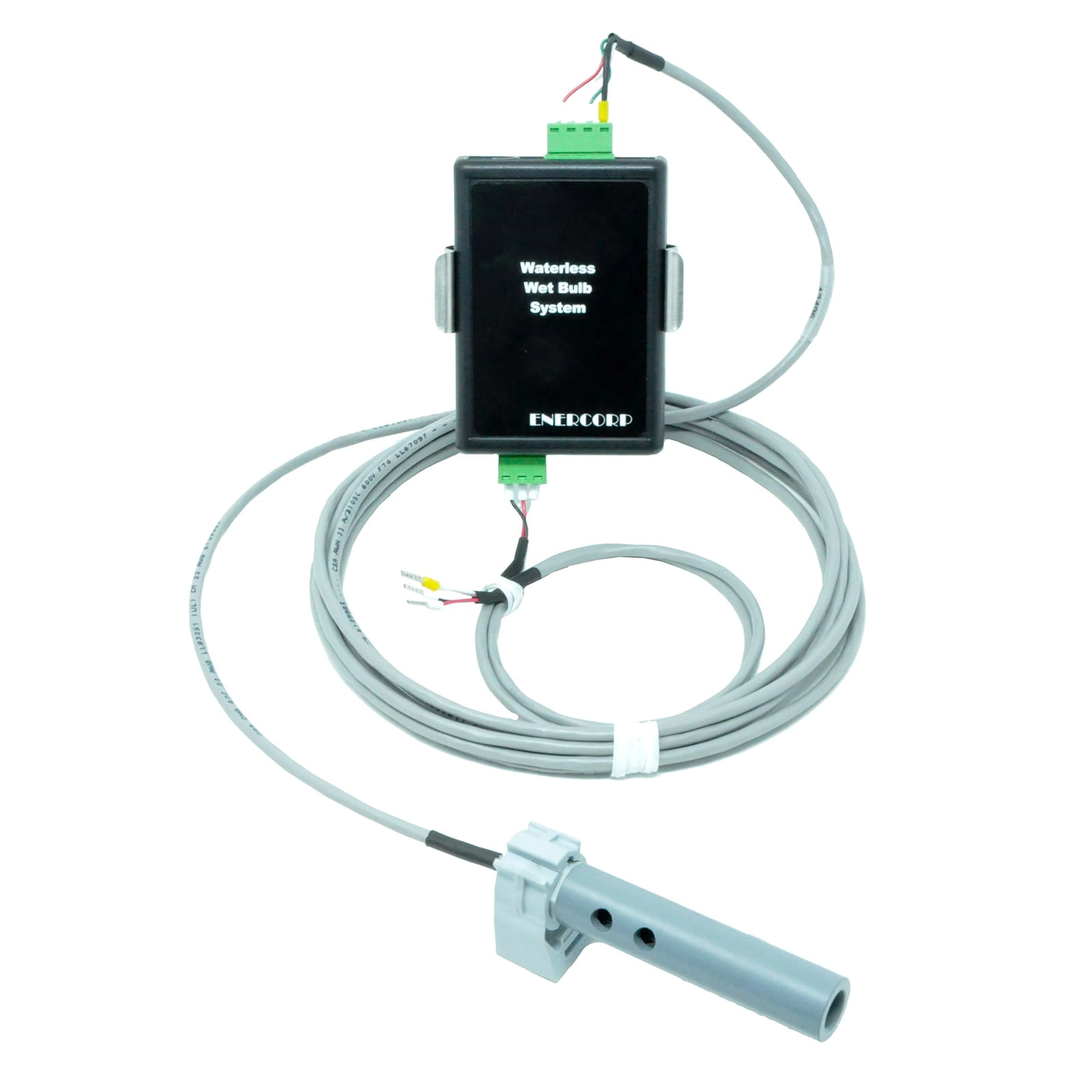

The WBS-4000 system includes:
waterless wet bulb sensor (WBS-S)
microprocessor based waterless wet bulb transducer (WBS-T)
connection cable for hooking up the transducer to the DCS-4000.

Description

The WBS-4000 system allows for a faster and more accurate wet bulb measurement without using water. These sensors don’t dry out or get dirty which would cause false readings with a traditional wet bulb. And with no water required the hassle of maintaining a dedicated water supply is eliminated.

Technical Product Specification

Lead length: 150”
Sensor type: Pt1000 RTD and solid state humidity sensor
Operating temperature: 0…85ºC

Description

The WBS-S is the temperature sensor associated with our Waterless Wet Bulb System, the WBS-4000. It combines a platinum RTD with a solid state humidity sensor to provide a reliable and hassle-free wet bulb temperature.

Technical Product Specification

Measures wind speed (1…40m/s), directions (10…350º), and air temperature (-25…60ºC)
Dimensions 33 x 42cm
Weight 1kg

Description

This compact Combi Wind and Temperature transmitter is an ideal option for quick installations and when space in the surrounding area is at a premium. It combines both wind direction and velocity measurement along with a temperature sensor in a sturdy and resistant housing. The wind vane, cup star, and housing consist partially of reinforced fibreglass, and the housing brackets and mast are constructed of stainless steel and aluminum.
